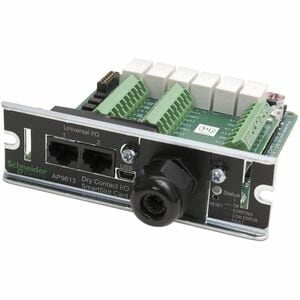

Dry Contact I/O SmartSlot Card AP9613
SKU
156193
Brand
MPN
AP9613
Warranty
Standard Manufacturer's Warranty
$385.00
Buy Now And Earn 385 Reward Points!
The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included USB cable to the Card and a PC to use the Configuration Utility user interface. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.
| Product Type | UPS Management Adapter |
| Proprietary Slot Type | SmartSlot |
| Brand Name | APC by Schneider Electric |
| Product Color | Black |
| Manufacturer Part Number | AP9613 |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Name | Dry Contact I/O SmartSlot Card |
| Additional Information | • 6 x Configurable Output Relays • Optional Dry Contact I/O Accessory • Expandable Input and Output Ports • 4 x Configurable Input Contacts • Compatible with SmartSlot enabled UPSs • Input Output Interaction • Configuration Utility |
| Certifications & Standards | • EN 55022 Class A • EN 55024 • EN 61000-3-2 • EN 61000-3-3 • EN61000-4-2 • EN61000-4-3 • EN61000-4-4 • EN61000-4-6 • FCC Part 15 Class A |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP9613_ROHS_DECLARATION&p_FileName=AP9613KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384164514&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384164514&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512011_V1 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512011_EN |
| REACH free of SVHC | No |
| Lead Free | Yes |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Weight (Approximate) | 208.7 g |
| Rack Height | 0U |
| Height | 38 mm |
| Width | 121 mm |
| Depth | 114 mm |
| Color Family | Black |
| Mounting Preference | No Preference |
| Shipping Dimensions | Height 5, Width 17, Length 24, Shipping Weight 0.46 KG |
Dry Contact I/O SmartSlot Card
