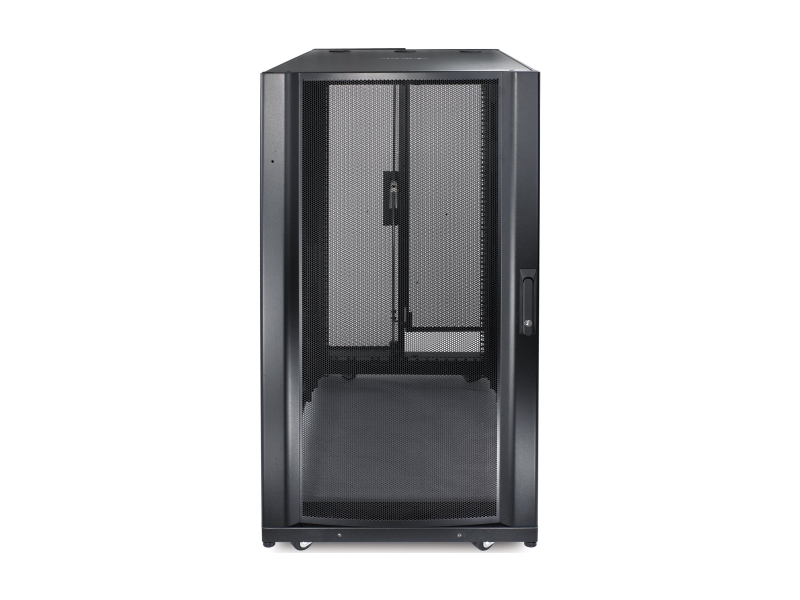

NetShelter SX 24U 600mm x 1070mm Deep Enclosure
Feature-rich enclosures optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow.
Includes: Casters, Doors, Key(s), Leveling feet, Roof, Side Panels, User Manual
Physical
Net Weight 89.09 KG
Maximum Height 1198.00 mm
Maximum Width 600.00 mm
Maximum Depth 1070.00 mm
Shipping Weight 106.82 KG
Shipping Height 1350.00 mm
Shipping Width 899.00 mm
Shipping Depth 1219.00 mm
Weight Capacity (static load) 1363.64 KG
Weight Capacity (dynamic load) 1022.73 KG
Minimum Mounting Depth 191.00 mm
Maximum Mounting Depth 915.00 mm
Rack Height 24U
Color Black
Units per Pallet 1.00
Vertical Posts 16 gauge
Front Door 16 gauge
Rear Door 18 gauge
Roof 18 gauge EIA Mounting Rails 14 gauge
Side Panels 18 gauge
Conformance
Regulatory Approvals UL 60950
Standard Warranty 5 year repair or replace
Standards EIA-310-E
Environmental Compliance RoHS,China RoHS,REACH: Contains No SVHCs
