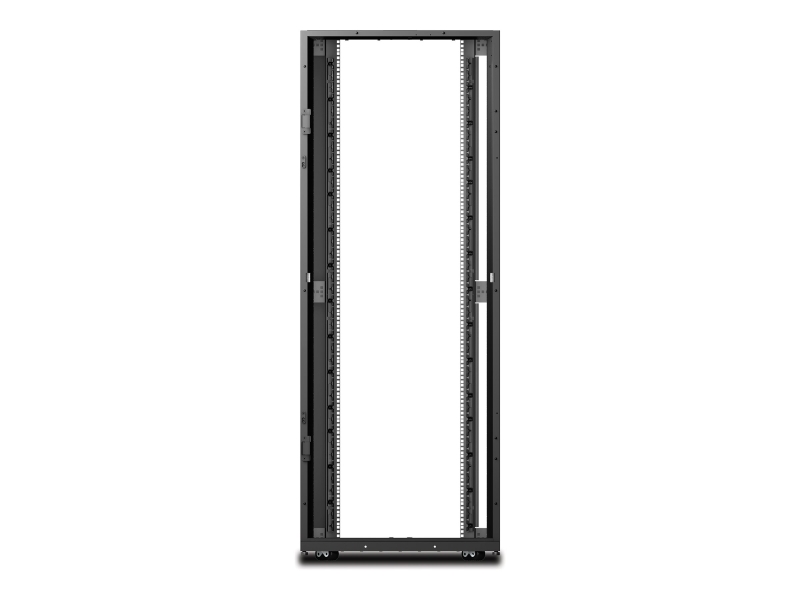

NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with Sides
NetShelter SX Networking Enclosure expands APC's superior IT enclosure line with improved support for high density networking applications. Integrated high density cable managers and improved cable access roof provide support for large cable bundles. When combined with the Side Airflow Duct Kit, the Networking Enclosure ensures complete isolation of cold intake and hot exhaust air for large switches and SAN directors.
Includes: Baying hardware, Documentation CD, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting Hardware, Pre-installed casters, Side Panels, User Manual, Vertical cable managers
Overview:
AR3140 Features
Integrated high density cable management
Decrease installation time while supporting the cabling needs of large networking switches.
Cable protection and pass-through
Smooth plastic fingers provide proper bend radius.
Optimized enclosure design for side-to-side airflow
Airflow management panels, left vertical mounting rail, and side airflow duct kit ensure proper side-to-side airflow to the networking switches from the cold aisle and provide isolation of hot air preventing it from re-entering the cold aisle. Additionally, the front left vertical mounting rail acts as an air block for exhaust air from networking switches.
Improved cable access
Maintain and organize large cable bundles for improved efficiency with open vertical mounting rails and large cable openings in roof.
High density cable management
The vertical mounting rails are opened up for increased cable access and the roof design has large open areas for cable entry/exit from the enclosure.

NetShelter SX Features & Benefits
Compatibility
Integrated with APC InfraStruXure products
APC cooling, power distribution, and cable management products work seamlessly with the enclosures to provide a complete IT infrastructure support system.
Guaranteed compatibility
Vendor-neutral mounting for guaranteed compatibility with all EIA-310 compliant 19" equipment. The APC "Fits Like a Glove" money back guarantee provides peace of mind that all of your EIA-310-D compliant rack-mount equipment will physically fit in a NetShelter SX enclosure.
Convenience
Cable Access
Large cable access slots in the roof provides access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor.
Simple Selection
No need to spend hours choosing from and compiling dozens of part numbers to create a single enclosure. APC has made it easy by handling the details and providing complete enclosures with single part numbers.
Ventilated
Perforated front and rear doors provide ample ventilation for servers and networking equipment.
Quick release doors
Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple lift-off design.
Half-height side panels
Half-height quick release side panels reduce size and weight for easy handling and access to equipment. Side panels are lockable utilizing a single key with the doors.
Agility
Rear Cable Management channels
Integrated and adjustable rear channel provides zero U mounting locations for toolless accessories. Each channel has two mounting bays to support a combination of up to four accessories such as PDUs and vertical cable organizers.
Adjustable mounting rails
The vertical mounting rails can be adjusted in 1/4 in (6.4 mm) increments covering virtually any mounting requirement for IT equipment. U positions are numbered front and back for rapid installation of equipment.
Split rear doors
Split rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space. Only 11 inches (279 mm) of clearance is required behind the enclosures to allow for door swing.
Castors and adjustable leveling feet
Enclosures are shipped standard with both leveling feet and castors. Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench.
Overhead cable management
Overhead cable troughs and partitions install toollessly on the roof of the enclosure eliminating the need for ceiling mounted or underfloor mounted cable trays. Cable troughs and partitions are designed to manage both power and data cables while maintaining separation.
Joining capability
Enclosures include pre-installed joining hardware to join enclosures in a row and provide additional stability to the enclosure.
Safety
Structural Stability
A proven frame design, heavy-gauge mounting rails, and heavy-duty casters provide for 3000 lb (1364 kg) static and 2250 lb (1023 kg) dynamic load ratings.
Integrated electrical grounding
The roof, side panels and front and rear doors are grounded to the frame of the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding.


Specifications:
Physical
Net Weight
155.95KG
Maximum Height
1991.00mm
Maximum Width
750.00mm
Maximum Depth
1070.00mm
Shipping Weight
168.18KG
Shipping Height
2118.00mm
Shipping Width
850.00mm
Shipping Depth
1219.00mm
Weight Capacity (static load)
1363.64KG
Weight Capacity (dynamic load)
1022.73KG
Minimum Mounting Depth
279.00mm
Maximum Mounting Depth
870.00mm
Rack Height
42U
Color
Black
Units per Pallet
1.00
Vertical Posts
16gauge
Front Door
16gauge
Rear Door
16gauge
Roof
18gauge
EIA Mounting Rails
14gauge
Side Panels
18gauge
Conformance
Regulatory Approvals
UL 60950-1
Standard Warranty
5 year repair or replace
Standards
EIA-310-E
Environmental Compliance
RoHS
