Brand Name: APC
Product Line: NetShelter SX

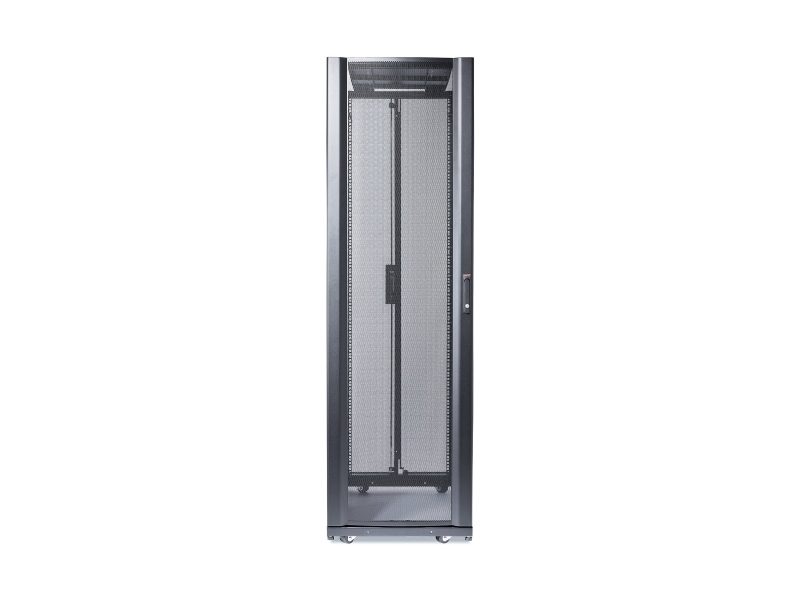

Product Name: NetShelter SX Enclosure Rack Cabinet
Marketing Information:
Feature-rich enclosures optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow.


Product Type: Rack Cabinet
Physical Characteristics

Color: Black
Height: 83.6"
Width: 23.6"
Depth: 47.2"
Rack Height: 45U
Rack Width: 19"
Weight (Approximate): 310.20 lb
Miscellaneous

Package Contents:
NetShelter SX Enclosure Rack Cabinet
Baying Hardware
Key(s)
Keyed-Like Doors
Side Panels
Leveling Feet
Mounting Hardware
Pre-Installed Casters
Side Panels
User Manual

Green Compliant: Yes
Green Compliance Certificate/Authority: REACH
Green Compliance Certificate/Authority: RoHS
Warranty
Net Weight 141.00 KG
Maximum Height 2124.00 mm
Maximum Width 600.00 mm
Maximum Depth 1200.00 mm
Shipping Weight 158.40 KG
Shipping Height 2240.00 mm
Shipping Width 746.00 mm
Shipping Depth 1220.00 mm
Weight Capacity (static load) 1363.64 KG
Weight Capacity (dynamic load) 1022.73 KG
Minimum Mounting Depth 191.00 mm
Maximum Mounting Depth 1048.00 mm
Rack Height 45U
Rack Width 19"
Color Black
Units per Pallet 1.00
Vertical Posts 16 gauge
Front Door 16 gauge
Rear Door 18 gauge
Roof 18 gauge
EIA Mounting Rails 14 gauge
Side Panels 18 gauge
Conformance
Regulatory Approvals UL 60950-1
Standard Warranty 5 year repair or replace
Standards EIA-310-E
Sustainable Offer Status
RoHS Compliant
REACH REACH: Contains No SVHCs
