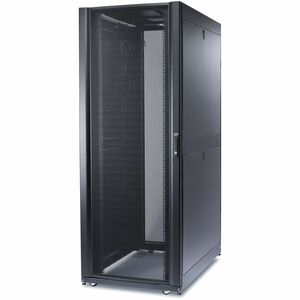

NetShelter Sx 45U 750mm Wide X 1200mm De AR3355
SKU
188193
Brand
MPN
AR3355
Warranty
Standard Manufacturer's Warranty
$5,068.00
Buy Now And Earn 5068 Reward Points!
Feature-rich rack enclosure optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow. Includes: Baying hardware, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting hardware, Pre-installed casters, Side panels. Split rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space. Only 11 inches (279 mm) of clearance is required behind the enclosures to allow for door swing. Enclosures include pre-installed joining hardware to join enclosures in a row and provide additional stability to the enclosure. Enclosures are shipped standard with both leveling feet and castors. Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench. Integrated and adjustable rear accessory channel provides zero U mounting locations for toolless accessories. Each channel has two mounting bays to support a combination of up to four accessories such as PDUs and vertical cable organizers. Enclosures with shock packaging are standard enclosures with provisions in the packaging design and enclosure assembly for shipping the enclosures with equipment mounted inside.
| Product Type | Rack Cabinet |
| Weight (Approximate) | 169 kg |
| Rack Width | 482.60 mm |
| Rack Height | 45U |
| Brand Name | APC by Schneider Electric |
| Height | 2124 mm |
| Width | 750 mm |
| Depth | 1200 mm |
| Product Family | NetShelter SX |
| TAA Compliant | Yes |
| Product Color | Black |
| Color Family | Black |
| Manufacturer Part Number | AR3355 |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | NetShelter SX Enclosure Rack Cabinet |
| Product Line | NetShelter SX |
| Additional Information | • Regulatory Approvals: UL 60950-1 • Standards: EIA-310-E |
| For Country/Region | United States |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR3355_ROHS_DECLARATION&p_FileName=AR3355KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194534&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194534&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN |
| REACH free of SVHC | No |
| Units Per Pallet | 1 |
| Rail Material Gauge | 14 |
| Door Material Gauge | 18 |
| Roof/Top Material Gauge | 18 |
| Side Panel Material Gauge | 18 |
| Static/Stationary Weight Capacity | 1360.78 kg |
| Dynamic/Rolling Weight Capacity | 1020.58 kg |
| Mounting Preference | No Preference |
| Shipping Dimensions | Height 224, Width 85, Length 132, Shipping Weight 188.4 KG |
NetShelter SX 45U 750mm Wide x 1200mm De
