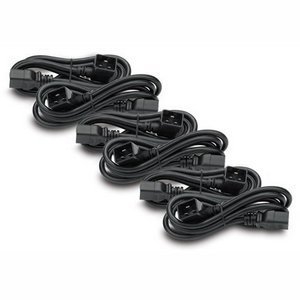

Apc Power Cord Kit, 16a, 208/ 230v, C19 To C20r, 6ft, 3l + 3r Ap98896f
Low profile cord designed to eliminate space interference when accessing removable hot swap blade modules.
Includes: 3 Left-angle jumper cords, 3 Right-angle jumper cords
Output
Output Connections
(1) IEC 320 C19
Input
Input Connections
IEC-320 C20
Maximum Input Current per phase
16A
Physical
Net Weight
2.02KG
Maximum Height
1829.00mm
Maximum Width
114.00mm
Maximum Depth
51.00mm
Shipping Weight
2.12KG
Shipping Height
216.00mm
Shipping Width
127.00mm
Shipping Depth
152.00mm
Color
Black
Environmental
Operating Environment
-5 - 60C
Operating Relative Humidity
5 - 95%
Operating Elevation
0-3000meters
Storage Temperature
-25 - 65C
Storage Relative Humidity
5 - 95%
Storage Elevation
0-15000meters
Conformance
Standard Warranty
2 years repair or replace
Environmental Compliance
RoHS,China RoHS
| Marketing Text | Low profile cord designed to eliminate space interference when accessing removable hot swap blade modules. |
| PI Date | Jul 2011 |
| Brand Name | APC |
| Manufacturer Web Site | http://www.apc.com |
| Product Type | Power Cord |
| Input Connections | 1 x IEC-320 C20 |
| Output Connections | 1 x IEC 320 C19 |
| Input Current | 16A |
| Depth (mm) | 51.0 |
| Height (mm) | 1829.0 |
| Width (mm) | 114.0 |
| Weight (Kg) | 2.0 |
| Color | Black |
| Operating Temperature | -5 to 60°C |
| Package Includes | * 3 Left-angle jumper cords * 3 Right-angle jumper cords |
| Compliance Standards | * RoHS,China RoHS |
| Other Features | * Maximum Input Current per phase: 16A |
| Warranty Information | 2 years repair or replace |
