Power Cords

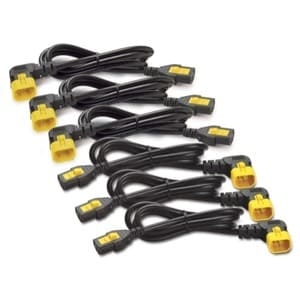

Power Cord Kit (6 ea), Locking, C13 to C14 (90 Degree), 1.2M

AP8704R-WW

Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.

Specifications:


Output

Maximum Total Current Draw per Phase
10A

Output Connections
(1) IEC 320 C13 IEC 320 C13

Cord Length
1.22 meters

Input

Input Connections
IEC-320 C14

Cord Length
1.22 meters

Number of Power Cords
6

Maximum Line Current per phase
10A

Maximum Input Current per phase
10A

Physical

Net Weight
1.01 KG

Maximum Height
240.00 mm

Maximum Width
70.00 mm

Maximum Depth
45.00 mm

Shipping Weight
1.01 KG

Shipping Height
240.00 mm

Shipping Width
70.00 mm

Shipping Depth
45.00 mm

Color
Black

Units per Pallet
390.00

Environmental

Operating Environment
0 - 70 ?C

Operating Relative Humidity
20 - 80%

Operating Elevation
0-3000 meters

Storage Temperature
-25 - 75 ?C

Storage Relative Humidity
20 - 80%

Storage Elevation
0-15000 meters

Conformance

Regulatory Approvals
CCC, PSE, VDE

Standard Warranty
2 years repair or replace

Sustainable Offer Status

RoHS
Compliant

REACH
REACH: Contains No SVHCs
