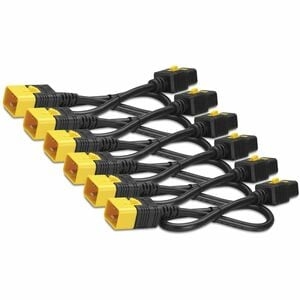

Apc Power Cord Kit C19 To C20 1.8m Power Cord Kit (6 Ea) Ap8716s

SKU
82784
Brand
MPN
AP8716S
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$302.00
Buy Now And Earn 302 Reward Points!

AP8716S Features

Power Cord Kit (6 ea), Locking, C19 to C20, 1.8m

Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.

Output

  • Cord Length
    6 ft ( 1.83 meters )
  • Maximum Total Current Draw
    16
  • Output Connections
    (1) IEC 320 C19 (Battery Backup)

Input

  • Input Connections
    IEC-320 C20
  • Cord Length
    6 ft ( 1.83 meters )
  • Number of Power Cords
    6
  • Maximum Input Current
    16 A
  • Maximum Line Current
    16 A

Physical

  • Maximum Height
    11.81 inches ( 300 , 30.0 CM )
  • Maximum Width
    3.15 inches ( 80 , 8.0 CM )
  • Maximum Depth
    2.76 inches ( 70 , 7.0 CM )
  • Net Weight
    4.75 lbs. ( 2.16 KG )
  • Shipping weight
    4.75 lbs. ( 2.16 KG )
  • Shipping Height
    11.81 inches ( 300 , 30.0 CM )
  • Shipping Width
    3.15 inches ( 80 , 8.0 CM )
  • Shipping Depth
    2.76 inches ( 70 , 7.0 CM )
  • Units per Pallet
    240.0

Environmental

  • Operating Environment
    32 - 167 °F ( 0 - 75 °C )
  • Operating Relative Humidity
    20 - 80 %
  • Operating Elevation
    0-10000 ft ( 0-3000 meters )
  • Storage Temperature
    -25 - 75 °C
  • Storage Relative Humidity
    20 - 80 %
  • Storage Elevation
    0-50000 ft ( 0-15000 meters )

Conformance

  • Approvals
    CCC, CSA, PSE, UL Listed, VDE
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
  • REACH
    REACH: Contains No SVHCs
  • PEP
    Available in Documentation tab
  • EOLI
    Available in Documentation tab
