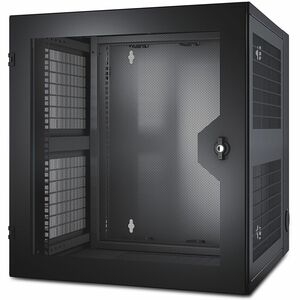

NetShelter Wx 13U W/Threaded Hole Vertical Mounting Rail Vented Front Door Black AR100HD
SKU
78955
Brand
MPN
AR100HD
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$1,566.00
Buy Now And Earn 1566 Reward Points!
Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack hinges at the rear allowing for access to the back of the rack during installation and setup or while undergoing maintenance. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top mounted and caster kit. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 13U Wall mount cabinet, 19 inches maximum mounting depth, 200lb weight capacity, 19"" rack width, ships fully assembled, vented door, 5 year APC warranty
More from the Manufacturer
More from the Manufacturer
| Application/Usage | Airflow System, Networking |
| Product Type | Rack Cabinet |
| Weight (Approximate) | 42.73 kg |
| Features | Cable Management, Adjustable Mounting Rails, Side-to-side Airflow |
| Form Factor | Wall Mountable |
| Rack Width | 482.60 mm |
| Rack Height | 13U |
| Brand Name | APC |
| Assembly Required | No |
| Height | 663 mm |
| Width | 584 mm |
| Depth | 631 mm |
| Product Family | NetShelter WX |
| Product Color | Black |
| Color Family | Black |
| Product Material | Steel |
| Manufacturer Part Number | AR100HD |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | NetShelter WX 13U w/Threaded Hole Vertical Mounting Rail Vented Front Door Black |
| Product Line | NetShelter WX |
| Compatibility | Side-to-Side Airflow |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR100HD_ROHS_DECLARATION&p_FileName=AR100HDKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=AR100HD_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| EU RoHS Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=AR100HD_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1512008EN&p_File_name=ENVPEP1512008_V1.pdf.pdf |
| REACH free of SVHC | No |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
| Sustainable Packaging | No |
| Reach Compliance Date | 12/10/2025 |
| Product Contributes Saved Avoided Emissions | No |
| Minimum Percentage of Recycled Metal Content | 0 |
| Rail Material Gauge | 16 |
| Roof/Top Material Gauge | 18 |
| Side Panel Material Gauge | 18 |
| Static/Stationary Weight Capacity | 90.91 kg |
| Front Rail | Yes |
| Mounting Preference | No Preference |
| Shipping Dimensions | Height 84, Width 70, Length 68, Shipping Weight 52.17 KG |
NetShelter WX 13U w/Threaded Hole Vertical Mounting Rail Vented Front Door Black
