APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.

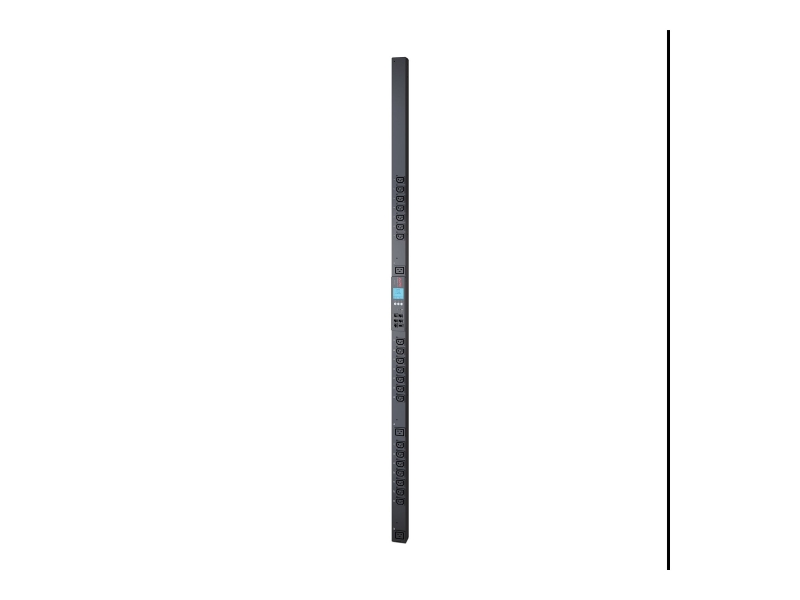

Product Description APC Metered-by-Outlet with Switching Rack PDU ZeroU 2G - power distribution unit
Device Type Power distribution unit - rack-mountable
Rack Size 0U
Weight 6.77 kg
Input Voltage AC 200/208/230 V
Output Voltage AC 230 V
Output Connector(s) 21 x power IEC 320 EN 60320 C13 ¦ 3 x power IEC 320 EN 60320 C19
Networking Ethernet 10/100
Remote Management Protocol SNMP, Telnet, HTTPS, SSH
Dimensions (WxDxH) 5.6 cm x 5.1 cm x 182.9 cm
Manufacturer Warranty 2 years warranty

Extended Specification

GENERAL
Colour Black
Device Type Power distribution unit - rack-mountable
Height (Rack Units) 0U
DIMENSIONS & WEIGHT
Depth 5.1 cm
Height 182.9 cm
Weight 6.77 kg
Width 5.6 cm
DIMENSIONS & WEIGHT (SHIPPING)
Shipping Depth 11.7 cm
Shipping Height 203.8 cm
Shipping Weight 9.05 kg
Shipping Width 16.2 cm
ENVIRONMENTAL PARAMETERS
Humidity Range Operating 5 - 95% (non-condensing)
Max Operating Temperature 45 ?C
Min Operating Temperature -5 ?C
EXPANSION / CONNECTIVITY
Interfaces 1 x LAN - RJ-45 ¦ 1 x management - RJ-12
MANUFACTURER WARRANTY
Service & Support 2 years warranty
Service & Support Details Limited warranty - 2 years
MISCELLANEOUS
Cables Included 1 x power cable - external - 3 m ¦ 1 x serial cable - external
Compliant Standards UL, EN 61000-3-2, ICES-003, VDE, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, RoHS, FCC Part 15 A, PSE Mark, REACH
Features E-mail notification , audible alarm, LED display, voltage monitoring, LED indicators, peripherals power switching (automatic), vertical orientation, firmware upgradable
Rack Mounting Kit Included
NETWORKING
Remote Management Interface Ethernet 10/100
Remote Management Protocol SNMP, Telnet, HTTPS, SSH
POWER DEVICE
Frequency Required 50/60 Hz
Input Connector(s) Power IEC 309
Input Voltage AC 200/208/230 V
Max Electric Current 16 A
Output Voltage AC 230 V
Power Output Connectors Details 21 x power IEC 320 EN 60320 C13 ¦ 3 x power IEC 320 EN 60320 C19
