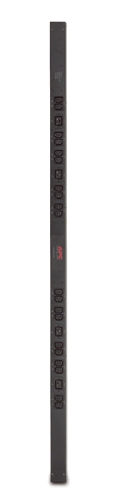

Rack PDU.BASIC.ZEROU.16A.230V.(20)C13 AP7554
SKU
33195
Brand
MPN
AP7554
Warranty
Standard Manufacturer's Warranty
$840.00
Buy Now And Earn 840 Reward Points!
QUICK OVERVIEW
IEC309 10FT CORD. AP7554
It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 16A and operates at 230V. The PDU features 20 IEC 60320 C13 outlets and 4 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. It includes a 10-foot power cord with an IEC 60309 16A plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.
| Product Type | PDU |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Mount Type | Rack-mountable |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | IEC 60309 16A |
| Cord Length | 3.05 m |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 |
| Product Family | NetShelter Basic |
| PDU Type | Basic |
| Power Rating (VA) | 3.68 kVA |
| Product Color | Black |
| Receptacle Detail | 20 x IEC 60320 C13, 4 x IEC 60320 C19 |
| Manufacturer Part Number | AP7554 |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Name | Basic Rack 3680VA PDU |
| Product Line | NetShelter |
| Product Series | Basic |
| Additional Information | • Single Input Power Source • Toolless Mounting Capabilities • Vertical Mounting Capabilities |
| Package Contents | • Basic Rack 3680VA PDU • Installation Guide • Rack Mounting Brackets • Toolless Mounting Kit |
| Certifications & Standards | • CCC • CE • VDE |
| Weight (Approximate) | 5.56 kg |
| Height | 1619.3 mm |
| Width | 55.6 mm |
| Depth | 43.9 mm |
| Color Family | Black |
| Shipping Dimensions | Height 12, Width 16, Length 212, Shipping Weight 7.62 KG |
RACK PDU.BASIC.ZEROU.16A.230V.(20)C13
