PRODUCT SUMMARY:

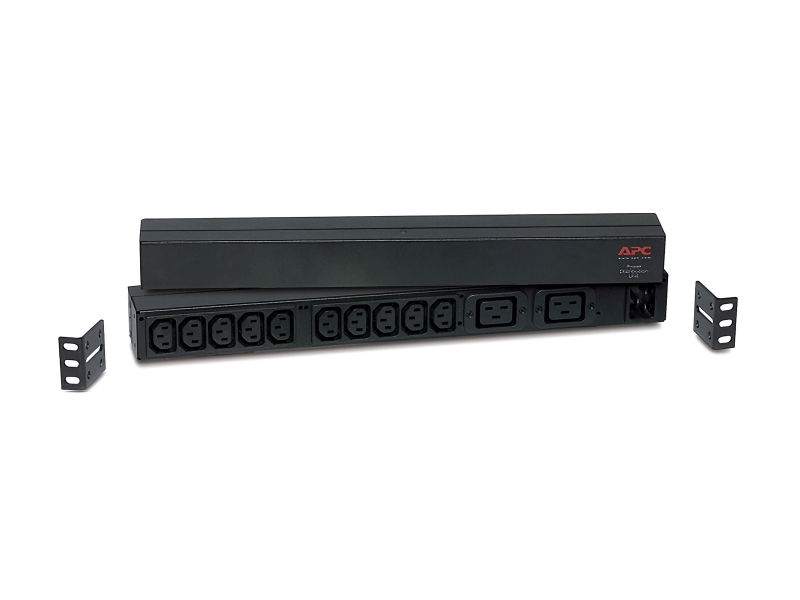

Basic Rack 3.68kVA PDU which allow users to distribute power outlets to rack-mount equipment with low cost power distribution. APC now offers Basic Rack PDU that mount veritcally, without tools in the rear channel of a NetShelter VX.
PRODUCT SPECIFICATIONS:
General Information
Manufacturer: American Power Conversion Corp
Manufacturer Part Number: AP9559
Manufacturer Website Address: www.apc.com
Brand Name: APC
Product Name: Basic Rack 3.68kVA PDU
Product Type: PDU
Technical Information
Input Receptacles: IEC 320-C20
Output Receptacles: 10 x IEC 320-C13 Always On, 2 x IEC 320-C19 Always On
Protection Type: Overload Protection
Power Description
Input Voltage: 230 V AC, 90 V AC to 250 V AC, 120 V AC, 208 V AC
Output Voltage: 120 V AC, 208 V AC, 230 V AC
Current: 12.80 A Input Current, 16 A Input Current, 16 A Output Current
Frequency: 50 Hz, 60 Hz
Power Rating: 3.68 kVA
Environmental Conditions
Temperature: 32? (0?) to 113? (45?) Operating, -13? (-25?) to 149? (65?) Storage
Humidity: 0 to 95% Non-condensing Relative Humidity Operating, 0 to 95% Non-condensing Relative Humidity Storage
Altitude: 0 m to 3048 m Operating, 0 m to 15240 m Storage
Physical Characteristics
Color: Black
Form Factor: 1U 19" Rack-mountable
Power Cord/Cable: 2.50 m Power Cord
Dimensions: 44.45 mm Height x 447 mm Width x 57 mm Depth
Weight (Approximate): 975 g
Miscellaneous
Package Contents: Basic Rack 3.68kVA PDU
Rack Mounting Brackets
User Manual
Additional Information: Maximum Line Current per phase: 16 A
Always on Outlets: 12
Certifications & Standards: UL Listed
cUL Listed
VDE
Warranty
Standard Warranty: 2 Year
Parts Warranty/Labor: 2 Year
