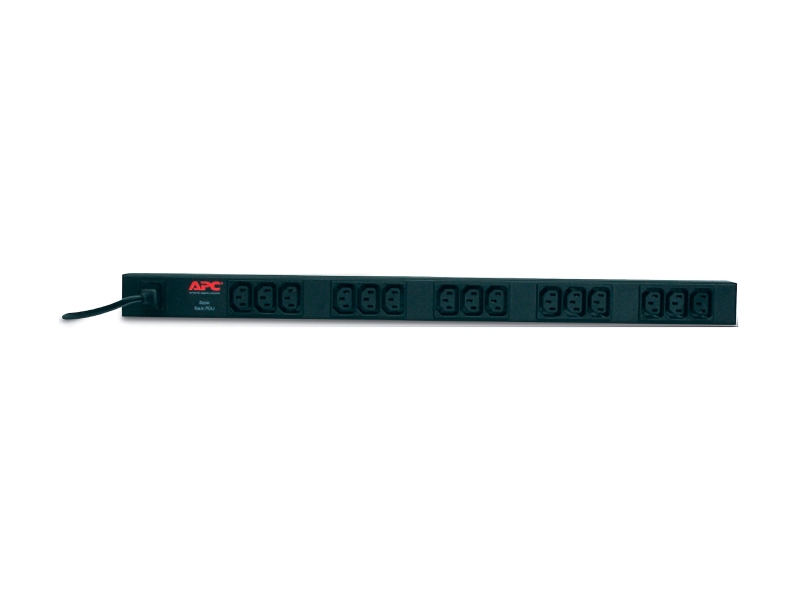

Basic Rack PDU

Rack PDU, Basic, Zero U, 10A,230V, (15)C13

APC Basic Rack PDU, Input: 200V, 208V, 230V, Input Connections: IEC-320 C14, Cord Length:6.5 feet ( 1.98 meters ), Output: 208V, 230V, Output Connections: IEC 320 C13

AP9568

Product Overview

AP9568 Features

Toolless Rack Mounting Capabilities
Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
Vertical Mounting Capabilities
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.

Basic Rack PDU Features & Benefits

Agility
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Total Cost of Ownership
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.

Specifications
Output
Nominal Output Voltage
208V, 230V
Maximum Total Current Draw per Phase
10A
Output Connections
(15) IEC 320 C13 IEC 320 C13
Input
Nominal Input Voltage
200V, 208V, 230V
Input Frequency
50/60 Hz
Input Connections
IEC-320 C14
Cord Length
6.5feet (1.98meters)
Number of Power Cords
1
Acceptable Input Voltage
200-240VAC
Maximum Input Current per phase
10A
Load Capacity
2300VA
Physical
Net Weight
4.40lbs. (2.00kg)
Maximum Height
24.00inches (610mm)
Maximum Width
1.75inches (44mm)
Maximum Depth
1.75inches (44mm)
Shipping Weight
6.00lbs. (2.73kg)
Shipping Height
25.50inches (648mm)
Shipping Width
7.00inches (178mm)
Shipping Depth
6.00inches (152mm)
Color
Black
Environmental
Operating Environment
32 - 113F (0 - 45C)
Operating Relative Humidity
0 - 95%
Operating Elevation
0-10000feet (0-3000meters)
Storage Temperature
-13 - 149F (-25 - 65C)
Storage Relative Humidity
0 - 95%
Storage Elevation
0-50000feet (0-15000meters)
Conformance
Regulatory Approvals
cUL Listed, CE, GOST, Queensland Australia, UL Listed, VDE
Standard Warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
Other Environmental Compliance
China RoHS
