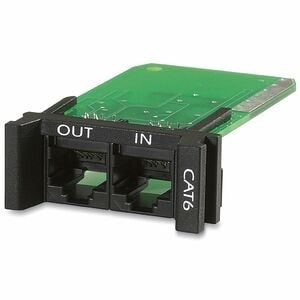

APC REPLACEABLE, RACKMOUNT, 1U, CAT 6 NETWORK SURGE PROTECTION MODULE PNETR6 106842
REPLACEABLE, RACKMOUNT, 1U, CAT 6 NETWORK SURGE PROTECTION MODULE
Protects an ethernet data port from damaging transients. Supports Cat5, Cat5E
and Cat6 cabling standards.
Brand Name APC
Manufacturer Web Site http://www.apc.com
Product Line ProtectNet
Product Type Surge Module
DEVICE FEATURES
Peak Current (Normal Mode) 0.2kAmp
Peak Current (Common Mode) 0.25kAmp
Data Line Protection RJ45 10/100/1000 Base-T Ethernet
Data Lines Protected 1
Number of Socket 1
DIMENSION
Depth (mm) 69.0
Height (mm) 44.0
Width (mm) 19.0
Weight (Kg) 0.02
OTHER FEATURES
Color Black
Compatibility * Compatible with Power Over Ethernet (POE) and network speeds up
to 10GbE (10GigE).
Compliance Standards * RoHS
Other Features * APC Surge Module for CAT6 or CAT5/5e Network Line, Replaceable,
1U, use with PRM4 or PRM24 Chassis
| Marketing Content | Protects an ethernet data port from damaging transients. Supports Cat5, Cat5E and Cat6 cabling standards. |
| PI Date | Jul 2011 |
| Brand Name | APC |
| Manufacturer Web Site | http://www.apc.com |
| Product Line | ProtectNet |
| Product Type | Surge Module |
| Peak Current (Normal Mode) | 0.2kAmp |
| Peak Current (Common Mode) | 0.25kAmp |
| Data Line Protection | RJ45 10/100/1000 Base-T Ethernet |
| Data Lines Protected | 1 |
| Number of Socket | 1 |
| Depth (mm) | 69.0 |
| Height (mm) | 44.0 |
| Width (mm) | 19.0 |
| Weight (Kg) | 0.02 |
| Color | Black |
| Compatibility | * Compatible with Power Over Ethernet (POE) and network speeds up to 10GbE (10GigE). |
| Compliance Standards | * RoHS |
| Other Features | * APC Surge Module for CAT6 or CAT5/5e Network Line, Replaceable, 1U, use with PRM4 or PRM24 Chassis |
