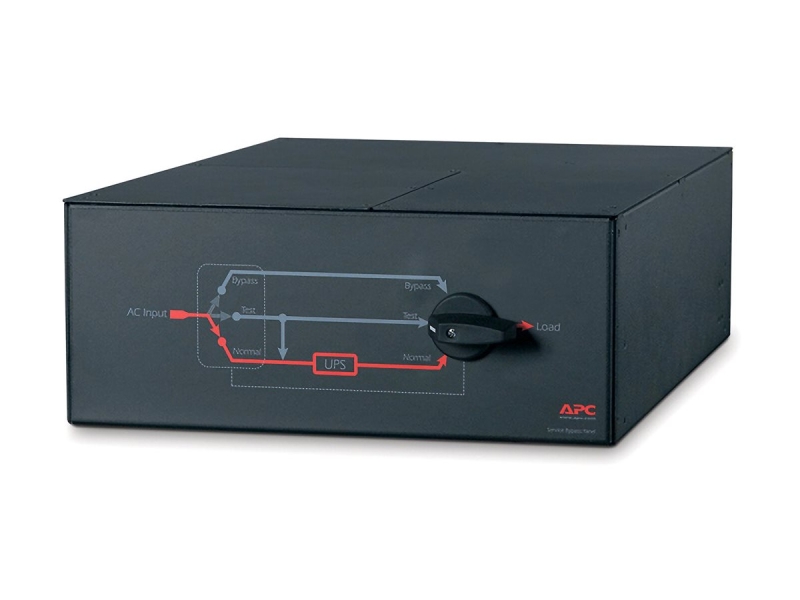

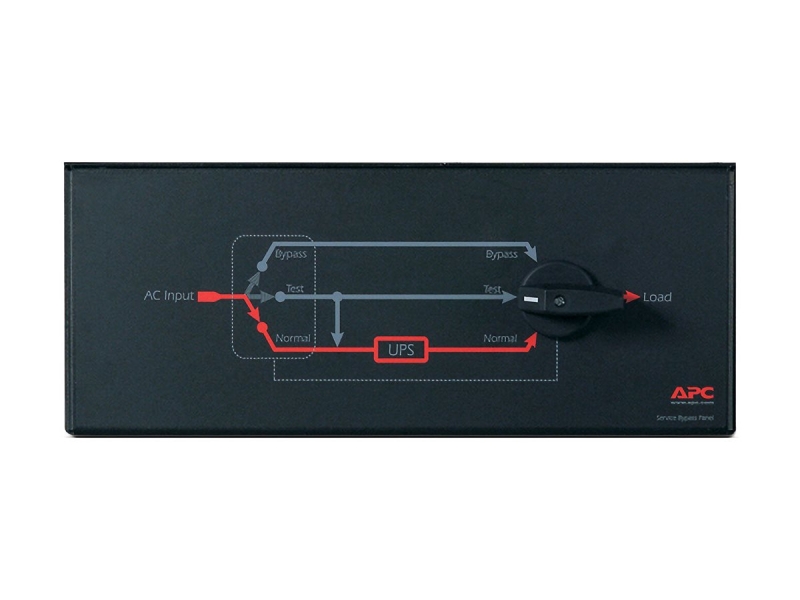

main product photo

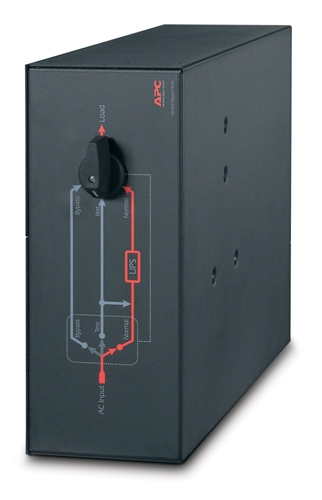

Apc (sbp16kp) Service Bypass Panel- 200/208/240v; 100a; Mbb; Hardwire Input/output Sbp16kp

SKU
225169
Brand
Apc
Manufacturer Link
MPN
SBP16KP
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$3,281.00
Buy Now And Earn 3281 Reward Points!
Add to Compare

BP16KPFeatures

APC Service Bypass Panel- 200/208/240V; 100A; MBB; Hardwire input/output

Extremely reliable service bypass panels designed for APC InfraStruXure® Type A, Smart-UPS, and Symmetra UPS products.

Includes : Installation Guide , Rack Mounting Brackets , User Manual

  • Wrap Around System Bypass
    (3) Breaker maintenance bypass panel to isolate the UPS from the critical load

Output

  • Nominal Output Voltage
    120V , 200V , 208V , 230V
  • Other Output Voltages
    220, 240
  • Overload Protection
    Yes
  • Maximum Total Current Draw
    100
  • Output Connections
    (1) Hard Wire 3-wire (H N + G) (Battery Backup)
    (1) Hard Wire 3-wire (2PH + G) (Battery Backup)

Input

  • Nominal Input Voltage
    200V , 208V , 230V , 480V 3PH
  • Input frequency
    50/60 Hz
  • Input Connections
    Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G), Hard Wire 4-wire (2PH+N+G), Hard Wire 5-wire (3PH + N + G)
  • Acceptable Input Voltage
    200-240VAC
  • Number of Power Cords
    1
  • Load Power Factor Range
    0 to 1
  • Load Capacity
    20000VA
  • Maximum Input Current
    100A
  • Maximum Line Current
    100A

Physical

  • Maximum Height
    178mm , 17.8cm
  • Maximum Width
    432mm , 43.2cm
  • Maximum Depth
    660mm , 66.0cm
  • Rack Height
    4U
  • Net Weight
    21.36kg
  • Shipping weight
    31.36kg
  • Shipping Height
    305mm , 30.5cm
  • Shipping Width
    610mm , 61.0cm
  • Shipping Depth
    991mm , 99.1cm
  • Color
    Black

Environmental

  • Operating Environment
    -20 - 50 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-4500meters
  • Storage Temperature
    -40 - 65 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-15000meters

Conformance

  • Approvals
    CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
  • Standard warranty
    2 years (parts only)

Sustainable Offer Status

  • RoHS
    Compliant
