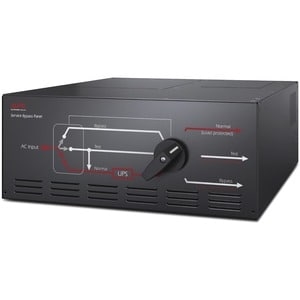

Apc Service Bypass Panel 230v 125a Hw Input Iec-320 Output (8) C19 Sbp20krmi4u
Output
Nominal Output Voltage 230V
Maximum Total Current Draw per Phase 125A
Output Connections
(8) IEC 320 C19 IEC 320 C19
Overload Protection Yes
Input
Nominal Input Voltage 220V, 230V, 240V, 380V 3PH, 400V 3PH
Input Frequency 50/60 Hz
Input Connections
Hard Wire 3 wire (1PH+N+G)
Hard Wire 5-wire (3PH + N + G)
Number of Power Cords 1
Maximum Line Current per phase 125A
Maximum Input Current per phase 125A
Load Capacity 20 kVA
Load Power Factor Range 0 to 1
Physical
Net Weight 18.78 KG
Maximum Height 178.00 mm
Maximum Width 432.00 mm
Maximum Depth 572.00 mm
Shipping Weight 31.36 KG
Shipping Height 305.00 mm
Shipping Width 610.00 mm
Shipping Depth 843.00 mm
Color Black
Units per Pallet 6.00
Environmental
Operating Environment -20 - 50 ?C
Operating Relative Humidity 0 - 95%
Operating Elevation 0-4500 meters
Storage Temperature -40 - 65 ?C
Storage Relative Humidity 0 - 95%
Storage Elevation 0-15000 meters
Conformance
Regulatory Approvals CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
Standard Warranty 2 years (parts only)
Sustainable Offer Status
RoHS Compliant
REACH REACH: Contains No SVHCs
| Marketing Text | Breaker maintenance bypass panel to isolate the UPS from the critical load. |
| PI Date | Jul 2011 |
| Brand Name | APC |
| Manufacturer Web Site | https://www.apc.com/ |
| Product Type | Bypass Panels |
| Input Connection | Hard Wire 3-Wire |
| Output Connections | 8 x IEC 320 C19 |
| Output Voltage | 230Volt |
| Input Voltage | 230Volt |
| Input Frequency | 50 - 60Hz |
| Total Current Drawn | 125A |
| Depth (mm) | 572.0 |
| Height (mm) | 178.0 |
| Width (mm) | 432.0 |
| Weight (Kg) | 18.8 |
| Color | Black |
| Operating Temperature | -20 to 50°C |
| Product Includes | * Installation guide, Rack Mounting brackets |
| Compliance Standards | * Environmental Compliance RoHS |
| Other Features | * Nominal Input Voltage 220V,230V,240V * Storage Temperature -40 to 65 °C * Load Capacity 20 kVA |
| Warranty Information | 2 years (parts only) |
