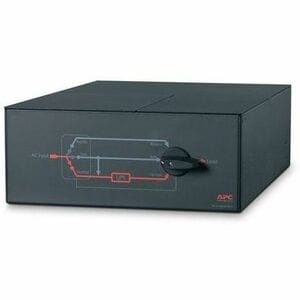

Service Bypass Panel- 200V Hdwire Input SBP16KP
SKU
82870
Brand
MPN
SBP16KP
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$3,331.00
Buy Now And Earn 3331 Reward Points!
The APC Service Bypass Panel support voltage of 200V, 208V, and 240V. It features a 4U rack-mount design and is rack mountable. It includes an installation guide, rack mounting brackets, and a user manual.
| Product Type | Bypass Switch |
| Brand Name | APC |
| Load Capacity (VA) | 20 kW |
| Product Color | Black |
| Manufacturer Part Number | SBP16KP |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Model | SBP16KP |
| Product Name | 20 kVA Rack Mountable Maintenance Bypass Switch |
| For Country/Region | United States |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SBP16KP_ROHS_DECLARATION&p_FileName=SBP16KPKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=SBP16KP_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| EU RoHS Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=SBP16KP_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
| Sustainable Packaging | No |
| Reach Compliance Date | 7/18/2025 |
| Weight (Approximate) | 21.36 kg |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 178 mm |
| Width | 432 mm |
| Depth | 660 mm |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Input Voltage | 200 V AC, 480 V AC, 230 V AC, 208 V AC |
| Output Voltage | 208 V AC, 230 V AC, 200 V AC, 120 V AC |
| Protection Type | Overload |
| Receptacles | 1 x Hard Wire 4-wire (2PH+N+G), 1 x Hard Wire 3-wire (H+N+E), 1 x Hard Wire 3-wire (2PH + G) |
| Shipping Dimensions | Height 30, Width 60, Length 100, Shipping Weight 31.29 KG |
SERVICE BYPASS PANEL- 200V HDWIRE INPUT
