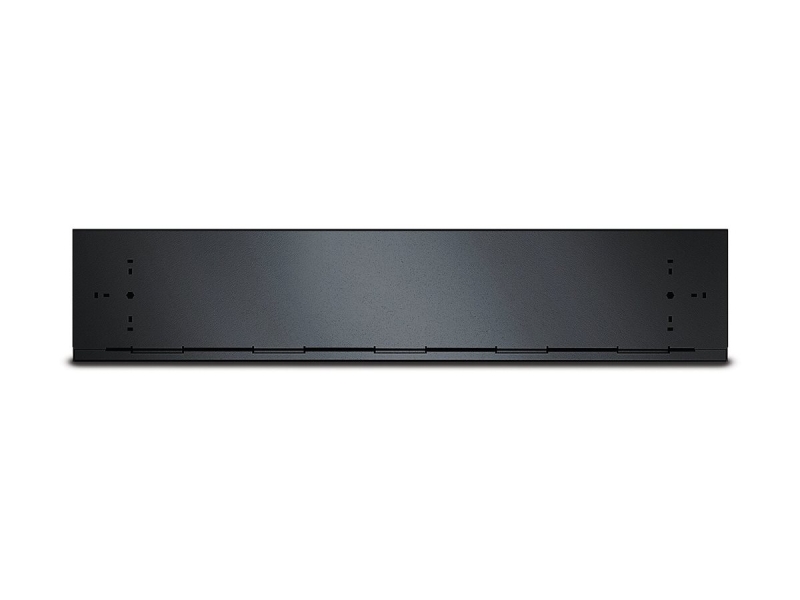

APC Service Bypass PDU, 230V 16AMP w. (6) IEC C13 and (1) C19
SBP3000RMI
APC Maintenance Bypass Panels, Input: 230V, Input Connections: IEC-320 C20, Cord Length:8.2 feet ( 2.5 meters ), Output: 230V, Output Connections: IEC 320 C13,IEC 320 C19,IEC Jumpers
Includes: Rack Mounting brackets, User Manual
Specifications:
Output
Nominal Output Voltage230V
Maximum Total Current Draw per Phase16A
Output Connections
(6) IEC 320 C13 IEC 320 C13
(1) IEC 320 C19 IEC 320 C19
(1) IEC Jumpers
Always on Outlets7
Overload ProtectionYes
Cord Length1meters
Input
Nominal Input Voltage230V
Input Frequency50/60 Hz
Input Connections
IEC-320 C20
Cord Length2.5meters
Number of Power Cords1
Acceptable Input Voltage220-240VAC
Maximum Line Current per phase16A
Maximum Input Current per phase16A
Load Capacity3000VA
Load Power Factor Range0 to 1
Physical
Net Weight2.09KG
Maximum Height89.00mm
Maximum Width432.00mm
Maximum Depth76.00mm
Shipping Weight3.91KG
Shipping Height151.00mm
Shipping Width463.00mm
Shipping Depth295.00mm
ColorBlack
Units per Pallet56.00
Environmental
Operating Environment0 - 40C
Operating Relative Humidity0 - 95%
Operating Elevation0-4500meters
Storage Temperature-15 - 45C
Storage Relative Humidity0 - 95%
Storage Elevation0-15000meters
Conformance
Regulatory ApprovalsVDE
Standard Warranty2 years repair or replace
Sustainable Offer Status
RoHSCompliant
REACHREACH: Contains No SVHCs
