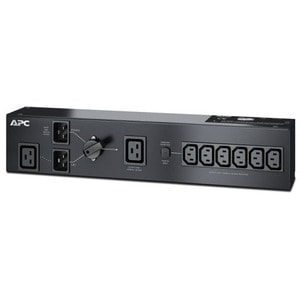

Apc Service Bypass Pdu, 230v 16amp W/ (6) Iec C13 And (1) C19 Sbp3000rmi 112583
SERVICE BYPASS PDU, 230V 16AMP W/ (6) IEC C13 AND (1) C19
Quick Transfer Rate is within the industry standard and within the time power
supplies will typically drop loads.
Brand Name APC
Manufacturer Web Site http://www.apc.com
Product Type Service Bypass PDU
DEVICE FEATURES
Input Voltage 230V
Output Voltage 230V
Input Frequency 50/60Hz
Input Connections 1 x IEC-320 C20
Output Connections #1 6 x IEC 320 C13
Output Connections #2 1 x IEC 320 C19
Output Connections #3 1 x IEC Jumpers
Load Capacity 3000VA
Input Current 16A
DIMENSION
Depth (mm) 76.0
Height (mm) 89.0
Width (mm) 432.0
Weight (Kg) 2.0
OTHER FEATURES
Color Black
Cord Length 2.5Meter
Operating Temperature 0 to 40?C
Package Includes * Rack Mounting brackets
* User Manual
Compliance Standards RoHS
Other Features * Maximum Line Current per phase: 16A
* Maximum Input Current per phase: 16A
* Quick Transfer Rate
* Wrap Around System Bypass
WARRANTY
Warranty Information 2 years repair or replace
| Marketing Text | Quick Transfer Rate is within the industry standard and within the time power supplies will typically drop loads. |
| PI Date | Jul 2011 |
| Brand Name | APC |
| Manufacturer Web Site | http://www.apc.com |
| Product Type | Service Bypass PDU |
| Input Voltage | 230V |
| Output Voltage | 230V |
| Input Frequency | 50/60Hz |
| Input Connections | 1 x IEC-320 C20 |
| Output Connections | 6 x IEC 320 C13 |
| Load Capacity | 3000VA |
| Input Current | 16A |
| Depth (mm) | 76.0 |
| Height (mm) | 89.0 |
| Width (mm) | 432.0 |
| Weight (Kg) | 2.0 |
| Color | Black |
| Cord Length | 2.5Meter |
| Operating Temperature | 0 to 40°C |
| Package Includes | * Rack Mounting brackets * User Manual |
| Compliance Standards | RoHS |
| Other Features | * Maximum Line Current per phase: 16A * Maximum Input Current per phase: 16A * Quick Transfer Rate * Wrap Around System Bypass |
| Warranty Information | 2 years repair or replace |
