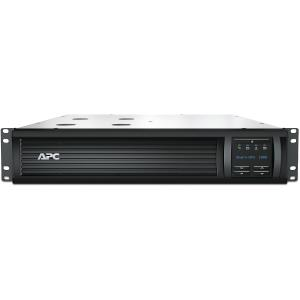

APC SMART-UPS 1000VA LCD RM 2U 230V WITH SMARTCONNECT Smt1000Rmi2Uc

Name: APC SMART-UPS 1000VA LCD RM 2U 230V WITH SMARTCONNECT Smt1000Rmi2Uc
Brand: Apc
SKU: 284679
Price: 1217 AUD
Availability: InStock

SKU

284679

Brand

Apc

Manufacturer Link

MPN

SMT1000RMI2UC

Manufacturer Product Link

Warranty

Standard Manufacturer's Warranty

Availability

In stock

Freight Estimate

$1,217.00

Buy Now And Earn 1217 Reward Points!

SMT1000RMI2UC Features

APC Smart-UPS 1000VA LCD RM 2U 230V with SmartConnect

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, USB cable

Cold-start capable
Provides temporary battery power when the utility power is out.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
Reduces utility costs, generates less heat.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
SmartSlot
Customize UPS capabilities with management cards.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits

USB connectivity

Provides management of the UPS via a USB port (not available on all models).

Serial connectivity

Provides management of the UPS via a serial port.

LED status indicators

Quickly understand unit and power status with visual indicators.

Audible alarms

Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

Network manageable

Provides remote power management of the UPS over the network.

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Resettable circuit breakers

Enables a quick recovery from overload events.

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Predictive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.

Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management

Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.

Avoids costly power problems by keeping your IT equipment and data safe and available

Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems

Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Smarter productivity with ability to tailor to your specific application needs

Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.

Save time with easy and convenient remote accessibility

Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Product Distribution

Andorra, United Arab Emirates, Afghanistan, Albania, Austria, Australia, Bosnia and Herzegovina, Belgium, Bulgaria, Bahrain, Botswana, Switzerland, Serbia and Montenegro, Cyprus, Czech Republic, Germany, Denmark, Estonia, Egypt, Spain, Finland, France, United Kingdom, Ghana, Greece, Croatia, Hungary, Ireland, Israel, Iceland, Italy, South Korea, Kuwait, Lithuania, Luxembourg, Latvia, Moldova, Macedonia, Malta, Malawi, Malaysia, Mozambique, Nigeria, Netherlands, Norway, New Zealand, Oman, Pakistan, Poland, Portugal, Romania, Saudi Arabia, Sweden, Singapore, Slovenia, Slovakia, South Africa, Zimbabwe

Basic
Application/Usage:	Computer Room
	Data Center
	Network
	Network Device
	Network Hub
	Router
	Server
	Switch
Backup/Run Time (Full Load):	8.70 Minute
Brand Name:	APC by Schneider Electric
Form Factor:	Rack-mountable
Hot Swappable:	Yes
Input Voltage Range:	160 V AC - 286 V AC
Input Voltage:	230 V AC
Load Capacity (VA):	1 kVA
Load Capacity (Watt):	700 W
Plug/Connector Type:	IEC 60320 C14
Product Family:	Smart-UPS
Product Type:	Line-interactive UPS
Rack Height:	2U
Receptacles:	2 x IEC Jumper
	4 x IEC 60320 C13
Waveform Type:	Sine Wave

Battery Information
Backup/Run Time (Full Load):	8.70 Minute
Hot Swappable:	Yes
Typical Battery Recharge Time:	3 Hour

General Information
Brand Name:	APC by Schneider Electric
Manufacturer Website Address:	http://www.schneider-electric.com.au
Manufacturer:	Schneider Electric SA
Product Line:	Smart-UPS
Product Name:	Smart-UPS 1000VA LCD RM 2U 230V with SmartConnect
Product Type:	Line-interactive UPS

Physical Characteristics
Depth:	477 mm
Form Factor:	Rack-mountable
Height:	86 mm
Rack Height:	2U
Weight (Approximate):	28.18 kg
Width:	432 mm

Power Description
Input Voltage Range:	160 V AC - 286 V AC
Input Voltage:	230 V AC
Load Capacity:	1 kVA/700 W
Output Voltage:	220 V AC
	230 V AC
	240 V AC
Waveform Type:	Sine Wave

Technical Information
Application/Usage:	Computer Room
	Data Center
	Network
	Network Device
	Network Hub
	Router
	Server
	Switch
Plug/Connector Type:	IEC 60320 C14
Receptacles:	2 x IEC Jumper
	4 x IEC 60320 C13
Transfer Time:	6 ms

Marketing Text	Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems.
PI Date	Jan 2019
Brand Name	APC
Manufacturer Web Site	http://www.apc.com
Product Line	Smart-UPS
Product Model	SMT1000RMI2UC
Product Type	Uninterruptible Power Supply
Load Capacity	1000V AC
Type	Sealed Lead Acid
Input Connection	1 x IEC 320 C14
SmartSlot	Yes
Input Voltage	230Volt
Output Power	700Watt
Output Voltage	230Volt
Surge Energy Rating	459Joules
Input Frequency	50 - 60Hz
Output Frequency	50 - 60Hz
Waveform	Sinewave
Depth (mm)	477.0
Height (mm)	86.0
Width (mm)	432.0
Weight (Kg)	28.2
Colour	Black
Other Features	* Provides temporary battery power when the utility power is out * Provides actual kilowatt hours of usage for energy conscious users * Reduces utlility costs, generates less heat * Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
Rack Height	2U
Software Type	Powerchute Business Edition
Control Panel	* Multi-function LCD status and control console
Audible Alarm	* Alarm when on battery : distinctive low battery alarm : configurable delays
Operating Temperature	0 - 40°C
Environmental Compliance	* ROHS
