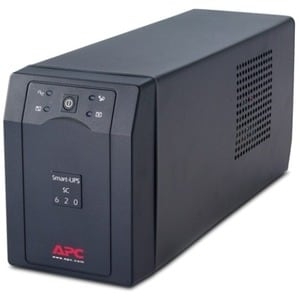

Smart-UPS Sc 620VA 230V SC620I
SKU
47869
Brand
MPN
SC620I
Warranty
Standard Manufacturer's Warranty
$494.00
Buy Now And Earn 494 Reward Points!
QUICK OVERVIEW
Includes PowerChute Business Edition Software SC620I
This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 620VA/390W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions. The tower mount SC features network grade protection, live swappable batteries, and built-in data line protection. It comes with IEC 320 C14 input, 1x IEC 320 C13 (surge protection), and 3x IEC 320 C13 (battery backup) outlets, and 2x IEC jumpers. The UPS has a 2-year warranty. Its dimensions are 375mm (depth) x 168mm (height) x 119mm (width) and weighs 12.27kg. Ideal for networking equipment and POS devices. It is an environmentally conscious product conforming to CE, EAC, GOST, VCCI, and VDE. Designed for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages.
| Battery Chemistry | Lead Acid |
| Product Type | Line-interactive UPS |
| Hot Swappable | Yes |
| Input Voltage | 220 V AC |
| Form Factor | Tower |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | IEC 320-C14 |
| Product Family | Smart-UPS SC |
| Backup/Run Time (Half Load) | 15.70 Minute |
| Backup/Run Time (Full Load) | 5.50 Minute |
| Load Capacity (VA) | 620 VA |
| Load Capacity (Watt) | 390 W |
| Product Color | Grey |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Status Indicators | • On Line • On Battery • Replace Battery • Overload |
| Thermal Dissipation | 70 BTU/h |
| Maximum Operating Temperature | 45°C |
| Manufacturer Part Number | SC620I |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS SC 620VA |
| Product Line | Smart-UPS |
| Product Series | SC |
| Serial Port | Yes |
| Battery Management | Intelligent Battery Management |
| Alarm | On Battery, Configurable Delay, Low Battery |
| Additional Information | • Adjustable voltage sensitivity • Adjustable voltage-transfer points • Automatic restart of loads after UPS shutdown • Automatic self-test • Boost and Trim Automatic Voltage Regulation (AVR) • Cold-start capable • Generator Compatible • Predictive failure notification • Safety-agency approved • |
| Package Contents | • Smart-UPS SC 620VA • CD with software • Smart UPS signalling RS-232 cable • User Manual |
| Certifications & Standards | • CE • EN 50091-1 • EN 50091-2 • GOST • IEC 60950 • IRAM • PCBC • VCCI • VDE • UL 1449 |
| Weight (Approximate) | 12.25 kg |
| Height | 177.8 mm |
| Width | 127 mm |
| Depth | 381 mm |
| Color Family | Grey |
| Surge Energy Rating | 320 J |
| Dataline Protection | RJ-45 |
| Shipping Dimensions | Height 26, Width 32, Length 51, Shipping Weight 13.18 KG |
SMART-UPS SC 620VA 230V
