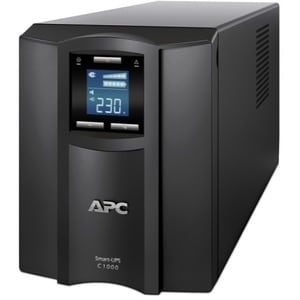

Apc Smart-ups Smc 1000va 230v Tower Smc1000i
SKU
157137
Brand
MPN
SMC1000I
Warranty
1 Year Manufacturer's return to base
$797.00
Buy Now And Earn 797 Reward Points!
Output
Output Power Capacity
600 Watts / 1000 VA
Max Configurable Power
600 Watts / 1000 VA
Nominal Output Voltage
230V
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Topology
Line Interactive
Waveform Type
Sine wave
Output Connections
| (8) IEC 320 C13 |
 |
| (2) IEC Jumpers |
Input
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
| IEC-320 C14 |
Input voltage range for main operations
180 - 287V
Input voltage adjustable range for mains operation
170 - 300V
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended
electrolyte : leakproof
Typical recharge time
3 hour(s)
RBC? Quantity
1
Runtime Graph
Hover over the line on the graph
above to view the runtime at any desired load
Curve fit to measured runtime data.
All measurements taken with new, fully charged
batteries, at typical environmental conditions, with
no electrical input and balanced resistive load (PF
= 1.0) output.
Energy Use/Efficiency
| Load | Efficiency |
| 25% | 93.5% |
| 50% | 96.2% |
| 75% | 96.9% |
| 100% | 97.2% |
Hover over the line on the graph above to
view the efficiency at any desired load
Curve fit to measured efficiency data. All
measurements taken in normal operating mode, at typical
environmental conditions, with nominal electrical input and
balanced resistive load (PF = 1.0) output.
Communications & Management
Interface Port(s)
USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm :
configurable delays
Emergency Power Off (EPO)
--
Surge Protection and Filtering
Surge energy rating
455 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge
let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
215.00 mm
Maximum Width
171.00 mm
Maximum Depth
439.00 mm
Net Weight
17.27 KG
Shipping Weight
19.55 KG
Shipping Height
376.00 mm
Shipping Width
328.00 mm
Shipping Depth
595.00 mm
Master Carton Units
1.00
Color
Black
Units per Pallet
18.00
Environmental
Operating Environment
0 - 40 ?C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 ?C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
41.00 dBA
Online Thermal Dissipation
100.00 BTU/hr
Conformance
Regulatory Approvals
CE, GOST, VDE
Standard Warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
SMC1000I Features
High online efficiency
Reduces utlility costs, generates less heat.
Green mode
Patent-pending operating mode that bypasses unused
electrical components in good power conditions to achieve
very high operating efficiency without sacrificing any
protection.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of
compatibility for active PFC (power factor corrected)
servers and sensitive electronics.
LCD Status Display
Provides key UPS status at a glance. Multiple status
indicators with load and battery bar graphs.
Cold-start capable
Provides temporary battery power when the utility power is
out.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage
according to battery temperature.
Smart-UPS Features & Benefits
Availability
Boost and Trim Automatic Voltage
Regulation (AVR)
Gives higher application availability by correcting
low and high voltage conditions without using the
battery (not available on all models).
Intelligent battery management
Maximizes battery performance, life, and reliability
through intelligent, precision charging.
Power conditioning
Protects connected loads from surges, spikes,
lightning, and other power disturbances.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge
voltage according to battery temperature.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon
the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection
of a battery that needs to be replaced.
Disconnected battery notification
Warns when a battery is not available to provide
backup power.
| Marketing Text | Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
| PI Date | Oct 2013 |
| Brand Name | APC |
| Manufacturer Web Site | http://www.apc.com |
| Product Line | Smart-UPS |
| Product Type | Uninterruptible Power Supply |
| Type | Sealed Lead Acid |
| Input Connection | 1 x IEC-320 C14 |
| Interface | 1 x USB |
| Input Voltage | 230Volt |
| Output Power | 600Watt |
| Output Voltage | 230Volt |
| Surge Energy Rating | 455Joules |
| Input Frequency | 50 - 60Hz |
| Output Frequency | 50 - 60Hz |
| Waveform | Sinewave |
| Depth (mm) | 439.0 |
| Height (mm) | 215.0 |
| Width (mm) | 171.0 |
| Weight (Kg) | 17.3 |
| Colour | Black |
| Other Features | * Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs. * Reduces utlility costs, generates less heat. * Provides temporary battery power when the utility power is out. |
| Control Panel | * Multi-function LCD status and control console |
| Audible Alarm | * Alarm when on battery : distinctive low battery alarm : configurable delays |
| Operating Temperature | 0 - 40°C |
| Environmental Compliance | RoHS |
| Warranty Information | 2 Years |
