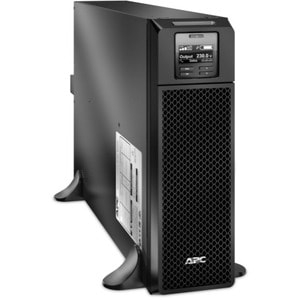

Apc Smart-ups Srt 5000va 230v Srt5kxli
Product Description APC Smart-UPS SRT - UPS - 4500 Watt - 5000 VA
Device Type UPS - rack-mountable / external
Rack Size 3U
Weight 54.55 kg
Input Voltage AC 230 V
Output Voltage AC 230 V ? 3% ( 50/60 Hz )
Power Capacity 4500 Watt / 5000 VA
Output Connector(s) 6 x power IEC 320 EN 60320 C13 ¦ 4 x power IEC 320 EN 60320
C19 ¦ 2 x IEC connector
Battery Lead Acid
Run Time (Up To) 4 min at full load
Networking Ethernet 10/100, USB
Dimensions (WxDxH) 13 cm x 71.9 cm x 43.2 cm
Manufacturer Warranty 3 years warranty
Extended Specification
GENERAL
Colour Black
Device Type UPS - rack-mountable / external
Height (Rack Units) 3U
BATTERY
Features Maintenance free, sealed, leak proof
Recharge Time 3 hours
Run Time (Up To) 4 min at full load ¦ 11.8 min at half load
Technology Lead Acid
DIMENSIONS & WEIGHT
Depth 71.9 cm
Height 43.2 cm
Weight 54.55 kg
Width 13 cm
DIMENSIONS & WEIGHT (SHIPPING)
Shipping Depth 96 cm
Shipping Height 33 cm
Shipping Weight 63.5 kg
Shipping Width 61 cm
ENVIRONMENTAL PARAMETERS
Humidity Range Operating 0 - 95% (non-condensing)
Max Operating Temperature 40 ?C
Min Operating Temperature 0 ?C
Sound Emission 55 dBA
EXPANSION / CONNECTIVITY
Expansion Slot(s) 1 (total) / 1 (free) x SmartSlot
Interfaces 1 x management (Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 PIN USB
Type B ¦ 1 x EPO (emergency power off) ¦ 1 x serial - RJ-45
MANUFACTURER WARRANTY
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years ¦ Limited warranty -
batteries - 2 years
MISCELLANEOUS
Compliant Standards C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH,
EN 62040-2, IP20, EAC
Features Audible alarm, LCD display
NETWORKING
Remote Management Interface Ethernet 10/100, USB
POWER DEVICE
Efficiency 98%
Frequency Required 45 - 65 Hz
Input Connector(s) 1 x hardwire 3-wire (1PH + N + G)
Input Voltage AC 230 V
Output Voltage AC 230 V ? 3% ( 50/60 Hz )
Output Waveform Sinewave
Power Capacity 4500 Watt / 5000 VA
Power Output Connectors Details 6 x power IEC 320 EN 60320 C13 ¦ 4 x power IEC
320 EN 60320 C19 ¦ 2 x IEC connector
Surge Energy Rating 480 Joules
Surge Suppression Yes
UPS Technology On-line
| Marketing Text | High density, double-conversion on-line power protection with scalable runtime. Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. |
| PI Date | Feb 2015 |
| Brand Name | APC |
| Manufacturer Web Site | http://www.apc.com |
| Product Line | Smart-UPS |
| Product Type | Uninterruptible Power Supply |
| Type | Sealed Lead Acid |
| Input Connection | 1 x Hard Wire 3 wire (1PH+N+G) |
| SmartSlot | Yes |
| Input Voltage | 230Volt |
| Output Power | 4500Watt |
| Output Voltage | 230Volt |
| Surge Energy Rating | 480Joules |
| Input Frequency | 45 - 65Hz |
| Output Frequency | 50 - 60Hz |
| Waveform | Sinewave |
| Depth (mm) | 719.0 |
| Height (mm) | 432.0 |
| Width (mm) | 130.0 |
| Weight (Kg) | 54.6 |
| Colour | Black |
| Other Features | * Crest Factor - 3 : 1 * Topology - Double Conversion Online * Internal Bypass * Typical recharge time - 1.50 hour(s) |
| Control Panel | * Multi-function LCD status and control console. |
| Audible Alarm | * Audible and visible alarms prioritized by severity. |
| Operating Temperature | 0 - 40°C |
| Environmental Compliance | RoHS |
