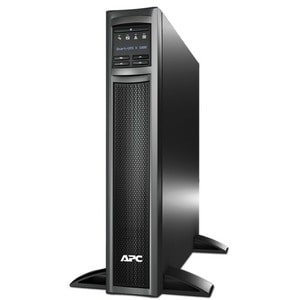

Apc Smart-ups X 1000va Rack/ Tower Lcd 230v Smx1000i 78930

Rated /5 based on customer reviews

SKU: 78930

Brand: Apc

Manufacturer Link


Warranty: 1 Year Manufacturer's return to base

Availability: In stock

Freight Estimate:

Buy Now And Earn Reward Points!

APC Smart-UPS 1000 LCD - UPS - AC 230 V - 670 Watt - 1000 VA - RS-232, USB - 8 Output Connector(s) (SMT1000I)
APC award-winning Smart-UPS is the most popular UPS in the world for servers, storage and networks. Trust to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today''s multi-core or virtualized servers that have varying load consumption. Smart-UPS series have long been considered the benchmark for all network and server UPS''s. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery.
Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date: Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
InfraStruXure Central compatible: Enables centralized management via APC InfraStruXure® Central.
SmartSlot: Customize UPS capabilities with management cards.
Cold-start capable: Provides temporary battery power when the utility power is out.
Serial Connectivity: Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC''s Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
Resettable circuit breakers: Enables a quick recovery from overload events.
Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected battery notification: Warns when a battery is not available to provide backup power.
Product Description APC Smart-UPS 1000 LCD - UPS - 670 Watt - 1000 VA
Device Type UPS - external
Nominal Output Voltage 120V
Dimensions (WxDxH) 17.1 cm x 43.9 cm x 21.9 cm
Output Voltage Distortion Less than 5% at full load
Weight 18.9 kg
Output Frequency (sync to mains) 47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal
Input Voltage AC 230 V
Crest Factor 3 : 1
Output Voltage AC 220/230/240 V ? 5% ( 47 - 53 / 57-63 Hz )
Waveform Type Sine wave
Power Provided 670 Watt / 1000 VA
Output Connections (8) NEMA 5-15R
Output Connector(s) 8 x power IEC 320 EN 60320 C13
Input Nominal Input Voltage 120V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections NEMA 5-15P
Cord Length 1.83 meters
Input voltage range for main operations: 82 - 144V
Input voltage adjustable range for mains operation: 75 - 154V
Battery Lead Acid
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Run Time (Up To) 6.1 min at full load
Typical recharge time 3 hour(s)
Networking RS-232, USB
Communications & Management Interface Port(s): DB-9 RS-232,SmartSlot,USB
Available SmartSlot™ Interface Quantity: 1
Control panel: Multi-function LCD status and control console
Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Surge Protection and Filtering Surge energy rating: 459 Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Environmental Operating Environment 0 - 40 ?C
Operating Relative Humidity 0 - 95%
Operating Elevation 0-3000 meters
Storage Temperature -15 - 45 ?C
Storage Relative Humidity 0 - 95%
Storage Elevation 0-15000 meters
Audible noise at 1 meter from surface of unit: 41.00 dBA
Online Thermal Dissipation 100.00 BTU/hr

Marketing TextGives higher application availability by correcting low and high voltage conditions without using the battery.
PI DateFeb 2011
Brand NameAPC
Manufacturer Web Sitehttp://www.apc.com
Product LineSmart-UPS
Product ModelNot defined
Product TypeUninterruptible Power Supply
TypeLead Acid
Input Connection1 x IEC-320 C14
Output Connection2 x IEC Jumpers
Interface1 x SmartSlot
Input Voltage230Volt
Output Power800Watt
Output Voltage1000Volt
Surge Energy Rating600Joules
Input Frequency50 - 60Hz
Output Frequency47 - 63Hz
Depth (mm)490.0
Height (mm)89.0
Width (mm)432.0
Weight (Kg)22.9
Cord Length1.83m
Other Features* Intuitive LCD interface
* Predictive replace battery date
* Audible alarms
* InfraStruXure Central compatible
* Cold-start capable
* Serial Connectivity
* Resettable circuit breakers
* Adjustable voltage sensitivity
* Power conditioning
* Network manageable
Rack Height2U
Control PanelMulti-function LCD status and control console
Audible AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Operating Temperature0 - 45°C
