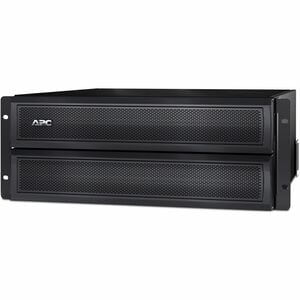

Apc Smart-ups X 120v External Battery Pack Rack/ Tower Smx120bp
utput
battoutvolt 120
Batteries & Runtime
Battery Volt-Amp-Hour Capacity 1200
Battery Type Maintenance-free sealed Lead-Acid battery with suspended
electrolyte : leakproof
Battery mounting Enclosed battery cartridge
Battery manufacturer --
Expected Battery Life (years) 3 - 5
RBC™ Quantity 2
Battery blocks per string 10
Physical
Net Weight 60.91 KG
Maximum Height 432.00 mm
Maximum Width 178.00 mm
Maximum Depth 483.00 mm
Shipping Weight 65.45 KG
Shipping Width 586.00 mm
Shipping Height 330.00 mm
Shipping Depth 633.00 mm
Rack Height 4U
Color Black
Units per Pallet 6.00
Environmental
Operating Environment 0 - 40 ?C
Operating Relative Humidity 0 - 95%
Operating Elevation 0-3000 meters
Storage Temperature -15 - 45 ?C
Storage Relative Humidity 0 - 95%
Storage Elevation 0-15000 meters
Conformance
Standard Warranty 2 years repair or replace
Sustainable Offer Status
RoHS Compliant
REACH REACH: Contains No SVHCs
| Marketing Text | Ensures clean, uninterrupted power to protected equipment while batteries are being replaced. |
| PI Date | Oct 2013 |
| Brand Name | APC |
| Manufacturer Web Site | http://www.apc.com |
| Product Type | Battery Systems |
| Battery Life | 3 to 5 Years |
| Battery Type | Sealed Lead Acid |
| Capacity | 1200VAh |
| Compatibility | * SMX2000RMLV2U, SMX2200RMHV2U, SMX2200RMLV2U, SMX3000RMHV2U, SMX3000RMHV2UNC, SMX3000RMLV2U, SMX3000RMLV2UNC |
| Voltage | 120Volt |
| Depth (mm) | 483.0 |
| Height (mm) | 432.0 |
| Width (mm) | 178.0 |
| Weight (Kg) | 60.9 |
| Colour | Black |
| Operating Temperature | 0 to 40°C |
| Other Features | * Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) * Allows additional run time to be quickly added as needed |
| Warranty Information | 2 years |
