Apc Smart-ups X 750va Rack/ Tower Lcd 230v Smx750i 78936

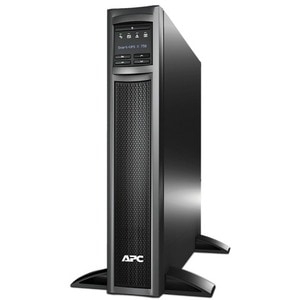

APC Smart-UPS X 750 Rack/Tower LCD - UPS ( rack-mountable ) - AC 230 V - 600
Watt - 750 VA - 8 Output Connector(s) - 2U (SMX750I)
Product Description APC Smart-UPS X 750 Rack/Tower LCD - UPS - 600 Watt - 750 VA
Device Type UPS - rack-mountable
Rack Size 2U
Output Voltage Distortion Less than 5%
Dimensions (WxDxH) 8.9 cm x 49 cm x 43.2 cm
Output Frequency (sync to mains) 47 - 63 Hz
Weight 22.1 kg
Crest Factor 3 : 1
Input Voltage AC 230 V
Waveform Type Sine wave
Output Voltage AC 230 V ? 5% ( 47 - 63 Hz )
Output Connections IEC 320 C13
IEC Jumpers
Power Provided 600 Watt / 750 VA
Nominal Input Voltage 230V
Output Connector(s) 8 x power IEC 320 EN 60320 C13
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Battery Lead Acid
Input Connections IEC-320 C14
Run Time (Up To) 14.2 min at full load
Cord Length 1.83 meters
Battery Type Maintenance-free sealed Lead-Acid battery with suspended
electrolyte : leakproof
Included Battery Modules 1
Available Battery Slots 1
Typical recharge time 3 hour(s)
RBC Quantity 1
DC Overcurrent Protection 60A
Available SmartSlot Interface Quantity 1
Control panel Multi-function LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload
continuous tone alarm
Surge energy rating 645 Joules
Filtering Full time multi-pole noise filtering : 5% IEEE surge let-through :
zero clamping response time : meets UL 1449
| Marketing Text | Gives higher application availability by correcting low and high voltage conditions without using the battery. |
| PI Date | Feb 2011 |
| Brand Name | APC |
| Manufacturer Web Site | http://www.apc.com |
| Product Line | Smart-UPS |
| Product Model | Not defined |
| Product Type | Uninterruptible Power Supply |
| Type | Sealed Lead Acid |
| Input Connection | 1 x IEC-320 C14 |
| SmartSlot | Yes |
| Input Voltage | 230Volt |
| Output Power | 600Watt |
| Output Voltage | 230Volt |
| Surge Energy Rating | 645Joules |
| Input Frequency | 50 - 60Hz |
| Output Frequency | 50 - 60Hz |
| Waveform | Sinewave |
| Depth (mm) | 490.0 |
| Height (mm) | 89.0 |
| Width (mm) | 432.0 |
| Weight (Kg) | 22.1 |
| Colour | Black |
| Cord Length | 1.83meter |
| Language Support | Multilingual |
| Other Features | * Intuitive LCD interface * Predictive replace battery date * Audible alarms * Cold-start capable * Serial Connectivity * Resettable circuit breakers * Adjustable voltage sensitivity * Power conditioning * Network manageable |
| Rack Height | 2U |
| Control Panel | * Multi-function LCD status and control console |
| Audible Alarm | * Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Operating Temperature | 0 - 40°C |
| Warranty Information | 3 Year |
