Smart-UPS

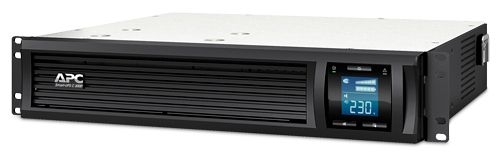

APC Smart-UPS C 2000VA 2U Rack mountable 230V

APC Smart-UPS,1300 Watts /2000 VA,Input 230V /Output 230V, Interface Port USB, Rack Height 2 U

Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, USB cable

Product Overview

SMC2000I-2U Features
High online efficiency
Reduces utlility costs, generates less heat.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
LCD Status Display
Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
Cold-start capable
Provides temporary battery power when the utility power is out.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.


Smart-UPS Features & Benefits
Availability
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Manageability
Network manageable
Provides remote power management of the UPS over the network.
Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators
Quickly understand unit and power status with visual indicators.
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Serviceability
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakers
Enables a quick recovery from overload events.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Adaptability
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Specifications

Output
Output Power Capacity
1300Watts /2000 VA
Max Configurable Power
1300Watts /2000 VA
Nominal Output Voltage
230V
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50 Hz
Topology
Line Interactive
Waveform Type
Sine wave

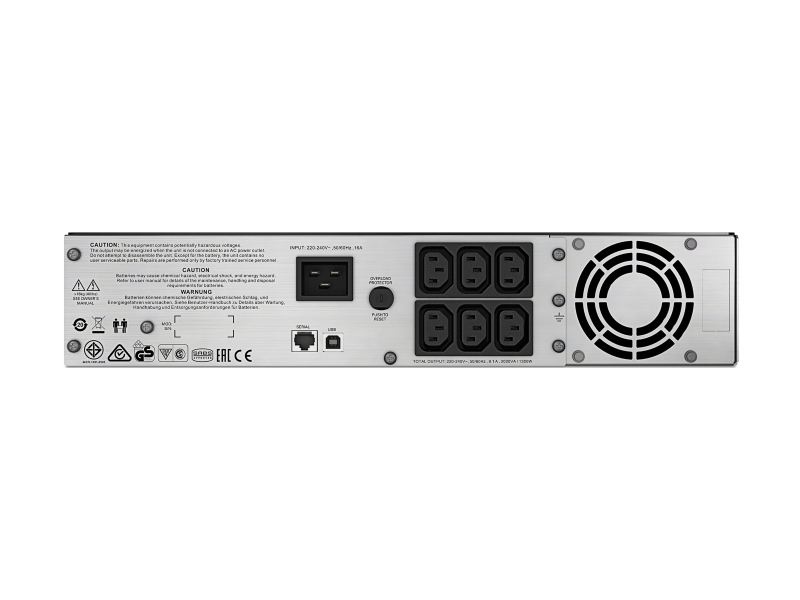

Output Connections
(6) IEC 320 C13 IEC 320 C13
(2) IEC Jumpers
Input
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Input voltage range for main operations
180 - 287V
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
RBC Quantity
1
Runtime Graph

Hover over the line on the graph above to view the runtime at any desired load
Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
View Enlarged Graph View Runtime Chart

Communications & Management
Interface Port(s)
USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
--
Surge Protection and Filtering
Surge energy rating
300Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
89.00mm
Maximum Width
480.00mm
Maximum Depth
470.00mm
Rack Height
2U
Net Weight
26.20KG
Shipping Weight
30.16KG
Shipping Height
250.00mm
Shipping Width
590.00mm
Shipping Depth
600.00mm
Color
Black
Units per Pallet
16.00
Environmental
Operating Environment
0 - 40C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000meters
Storage Temperature
-15 - 45C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
42.00dBA
Online Thermal Dissipation
81.00BTU/hr
Conformance
Regulatory Approvals
C-tick, CE, EAC, GOST, GS Mark, IRAM, SABS, VDE
Standard Warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
