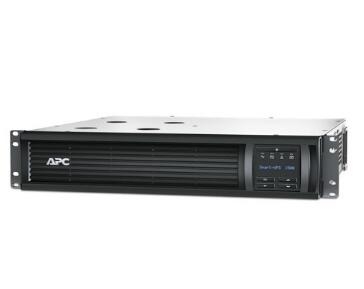

Apc (Smt1500Rmi2Uc) Apc Smart-Ups 1500Va Lcd Rm 2U 230V W/ Smart Connect Smt1500Rmi2Uc

Rated /5 based on customer reviews

SKU: 274069

Brand: Apc

Manufacturer Link

MPN: SMT1500RMI2UC

Manufacturer Product Link

Warranty: 1 Year Manufacturer's return to base

Availability: In stock

Freight Estimate:

Regular Price: $1,702.00

Special Price $1,480.00

Buy Now And Earn Reward Points!
Qty:

Output

Output power capacity
1.0 KWatts / 1.5 kVA
Max Configurable Power (Watts)
1.0 KWatts / 1.5 kVA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220, 240
Topology
Line Interactive
Waveform type
Sine wave
Output Connections
(2) IEC Jumpers (Battery Backup)
(4) IEC 320 C13 (Battery Backup)
Transfer Time
6ms typical : 10ms maximum

Input

Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Input voltage range for main operations
160 - 286V
Input voltage adjustable range for mains operation
151 - 302V
Other Input Voltages
220, 240

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
Replacement Battery
Expected Battery Life (years)
4 - 6
RBC Quantity
1

Communications & Management

Interface Port(s)
RJ-45 Serial, SmartSlot, USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Optional
Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
459Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height
86mm, 8.6CM
Maximum Width
432mm, 43.2CM
Maximum Depth
477mm, 47.7CM
Rack Height
2U
Net Weight
28.64KG
Shipping weight
31.91KG
Shipping Height
251mm, 25.1CM
Shipping Width
594mm, 59.4CM
Shipping Depth
603mm, 60.3CM
Color
Black
Units per Pallet
8.0

Environmental

Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-3000meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
46.0dBA
Online thermal dissipation
90.0BTU/hr

Conformance

Approvals
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, VDE
Standard warranty
3 years repair or replace (excluding battery) and 2 year for battery

Sustainable Offer Status

RoHS
Compliant
REACH
REACH: Contains No SVHCs
Other Environmental Compliance
China RoHS
