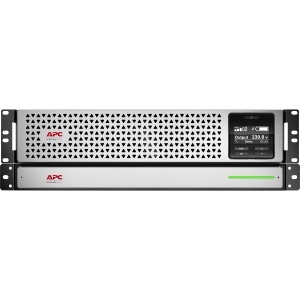

Apc (srtl1000rmxli-nc) Smart-ups Srt Li-ion 1000va Rm 230v Network Card Srtl1000rmxli-nc
SKU
270527
Brand
MPN
SRTL1000RMXLI-NC
Warranty
Standard Manufacturer's Warranty
$5,721.00
Buy Now And Earn 5721 Reward Points!
Smart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line has a rack/tower convertible chassis. The batteries allow for greater performance at higher temperatures and greater overall lifecycle of the UPS.Output Input Batteries & Runtime Communications & Management Surge Protection and Filtering Physical Environmental Conformance
Features:
- Battery failure notification
- LCD graphics display
- ECO Mode
- Rack/Tower convertible
- Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms
- ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment
- Output power capacity 900Watts / 1.0 kVA
- Max Configurable Power (Watts) 900Watts / 1.0 kVA
- Nominal Output Voltage 230V
- Output Voltage Distortion Less than 2%
- Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
- Other Output Voltages 220, 240
- Load Crest Factor 3 : 1
- Topology Double Conversion Online
- Waveform type Sine wave
- Output Connections (8) IEC 320 C13 (Battery Backup)
- Bypass Built-in Bypass
- Nominal Input Voltage 230V
- Input frequency 40 - 70 Hz (auto sensing)
- Input Connections IEC-320 C14
- Input voltage range for main operations 50-150 (40% Load), 80 - 150V
- Other Input Voltages 220, 240
- Battery type Li-ion
- Typical recharge time 6hour(s)
- Expected Battery Life (years) 5 - 10
- Extendable Run Time 1
- Extended Run Options APC-Smart-UPS-SRT-Li-Ion-1000VA-RM-230V-Network-Card
- Runtime View Runtime Graph View Runtime Chart
- Interface Port(s) RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
- Pre-Installed SmartSlot™ Cards AP9631
- Control panel Multi-function LCD status and control console
- Audible Alarm Audible and visible alarms prioritized by severity
- Emergency Power Off (EPO) Yes
- Surge energy rating 340Joules
- Maximum Height 128mm , 12.8CM
- Maximum Width 432mm , 43.2CM
- Maximum Depth 590mm , 59.0CM
- Rack Height 3U
- Net Weight 25.7KG
- Shipping weight 37.4KG
- Shipping Height 445mm , 44.5CM
- Shipping Width 600mm , 60.0CM
- Shipping Depth 850mm , 85.0CM
- Color Black
- Units per Pallet 6.0
- Operating Temperature 0 - 40 °C
- Operating Relative Humidity 0 - 95% non-condensing %
- Operating Elevation 0-3000meters
- Storage Temperature -20 - 50 °C
- Storage Relative Humidity 0 - 95% non-condensing %
- Storage Elevation 0-15000meters
- Audible noise at 1 meter from surface of unit 50.0dBA
- Online thermal dissipation 400.0BTU/hr
- Protection Class IP 20
- Approvals CE, CE Mark, EAC, RCM, VDE
- Standard warranty 5 year repair or replace
| Battery Information | |
|---|---|
| Backup/Run Time (Full Load): | 31.60 Minute |
| Hot Swappable: | Yes |
| Maximum Battery Recharge Time: | 6 Hour |
| General Information | |
|---|---|
| Brand Name: | Schneider Electric |
| Manufacturer Part Number: | SRTL1000RMXLI-NC |
| Manufacturer Website Address: | http://www.schneider-electric.com.au |
| Manufacturer: | Schneider Electric SA |
| Product Line: | Smart-UPS SRT |
| Product Name: | Smart-UPS SRT 1.0KVA Tower/Rack Mountable UPS |
| Product Type: | Dual Conversion Online UPS |
| Interfaces/Ports | |
|---|---|
| Network (RJ-45): | Yes |
| Physical Characteristics | |
|---|---|
| Depth: | 590 mm |
| Form Factor: | Tower/Rack Mountable |
| Height: | 128 mm |
| Rack Height: | 3U |
| Weight (Approximate): | 25.70 kg |
| Width: | 432 mm |
| Power Description | |
|---|---|
| Input Voltage Range: | 80 V AC - 150 V AC |
| Input Voltage: | 230 V AC |
| Load Capacity (VA): | 1 kVA |
| Load Capacity (Watt): | 900 W |
| Output Voltage: | 220 V AC |
| Waveform Type: | Sine Wave |
| Technical Information | |
|---|---|
| Plug/Connector Type: | IEC 60320 C14 |
| Receptacles: | 8 x IEC 60320 C13 |
