Apc (srtl1000rmxli) Smart-ups Srt Li-ion 1000va Rm 230v Srtl1000rmxli
A UPS developed for availability of your loads under unstable power conditions worldwide
Single-phase, double conversion online UPS with Li-Ion batteries and advanced management features
APC Smart-UPS with Lithium-Ion technology enables IT professionals to operate more effectively and decrease Total Cost of Ownership (TCO) by minimising UPS maintenance and offering remote UPS management across distributed environments.
Total Cost of Ownership decreases
up to 53% when using Smart-UPS Online Li-Ion UPS solutions.
- Greater life expectancy - Increase battery lifecycle 2X
- Greater cost savings - Reduce expenses over the lifetime of the UPS compared to UPSs with lead acid batteries
- Greater temperature tolerance - Excellent battery performance at higher ambient temperatures up to 40°C
- Greater voltage management of the battery discharge cycle

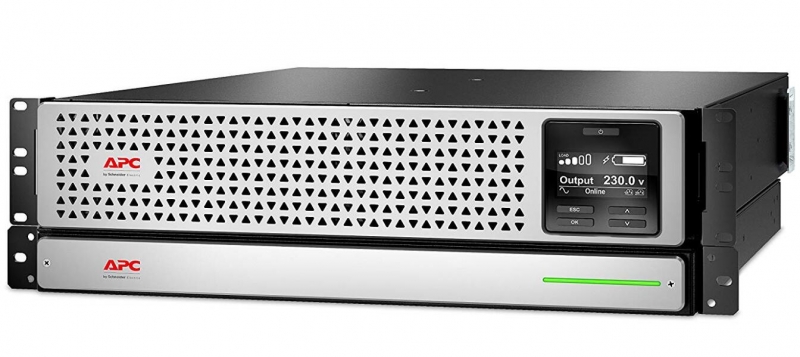

APC Smart-UPS Online Li-ion - SRTL1000RMXLI
max. Output 1.000 VA / 900 Watts - Rackmount 3U (2U UPS / 1U Battery Pack)
Rack / Tower convertible - LCD Panel, 8 Outlets IEC-C13, Shutdown Software, Network Managment Card pre-instaled
Product Characteristics
- Single-phase, double conversion online UPS with Li-Ion batteries and advanced management features
- Longer lifecycle - Double the life expectancy vs. sealed lead acid batteries
- Lighter weight - 1/3 lighter than sealed lead acid battery pack equivalent
- Accurately provides real-time status updates in your choice of basic or advanced menus
Product Details
 |  |  |
|---|---|---|
Power factor and Li-ion batteries maximizing UPS density.High power density More real power in watts, 0.9 pf Intelligent batterymanagement system Li-ion battery packs are monitored at an individual cell level to manage voltage and temperatures of the set of cells. This helps Li-ion battery pack to provide higher level of safety. Enhanced battery intelligence also allows the UPS to automatically recognize if a battery pack is instaled or other packs are added at a later date and adjust the runtimes for the connected load. Lithium Ion battery pack Provides long life battery power, ability to operate at higher temperatures without degradation of the performance of the battery. Ability to add an additional 4 battery packs, total of 5, to expand runtime Operate without battery Ability to immediately protect equipment when power returns after a complete discharge of the battery. | Proven performance with the largest instaled base of single-phase, double-conversion products.Network management card with environmental monitoring Remote monitoring and control of the UPS and the environment via Ethernet connection. Switched outlet group(s) Ability to control a group of output load receptacles independent from the main UPS. Emergency poweroff Remote UPS shutoff in the event of a fire or other emergency. Flash upgradeable firmware Allows for field updates of firmware via communication ports or Network Management Card (NMC) Built-in automatic and manual bypass Ensures seamless power to the load even when UPS functional failure is detected. | Intuitive, easy-to-use LCD provides clear and accurate information in multiple languages.LCD display screen Accurately provides real-time status updates in your choice of basic or advanced menus. Graphical LCD display with multicolour backlight Intuitive interface provides detailed and accurate information with ability to configure locally. Backlit screens
|
Smart-UPS Online Li-Ion Battery Pack - Long life, lighter weight, higher performance, high density
Features
- Longer lifecycle Double the life expectancy vs. sealed lead acid batteries
- Lighter weight 1/3 lighter than sealed lead acid battery pack equivalent
- High density 1U rack height, allows more extended run capability in a smaller footprint
- Battery Management System (BMS) Control energy flow of the battery pack using dedicated Battery Monitoring System
- Overvoltage and overtemperature protection at cell level, Overload, short circuit and thermal runaway protection, Battery Pack with dedicated internal fuse for multi-level protection Helps to provide higher level of safety
| Battery Information | |
|---|---|
| Backup/Run Time (Full Load): | 31.60 Minute |
| Hot Swappable: | Yes |
| Maximum Battery Recharge Time: | 6 Hour |
| General Information | |
|---|---|
| Brand Name: | APC by Schneider Electric |
| Manufacturer Part Number: | SRTL1000RMXLI |
| Manufacturer Website Address: | http://www.schneider-electric.com.au |
| Manufacturer: | Schneider Electric SA |
| Product Line: | Smart-UPS SRT |
| Product Name: | Smart-UPS SRT 1.0KVA Tower/Rack Mountable UPS |
| Product Type: | Dual Conversion Online UPS |
| Interfaces/Ports | |
|---|---|
| Network (RJ-45): | Yes |
| Physical Characteristics | |
|---|---|
| Depth: | 590 mm |
| Form Factor: | Tower/Rack Mountable |
| Height: | 128 mm |
| Rack Height: | 3U |
| Weight (Approximate): | 25.70 kg |
| Width: | 432 mm |
| Power Description | |
|---|---|
| Input Voltage Range: | 80 V AC - 150 V AC |
| Input Voltage: | 230 V AC |
| Load Capacity (VA): | 1 kVA |
| Load Capacity (Watt): | 900 W |
| Output Voltage: | 220 V AC |
| Waveform Type: | Sine Wave |
| Technical Information | |
|---|---|
| Plug/Connector Type: | IEC 60320 C14 |
| Receptacles: | 8 x IEC 60320 C13 |
