NetShelter Sx 42U 750mm Wide X 1070mm De AR3150
SKU
47952
Brand
MPN
AR3150
Warranty
Standard Manufacturer's Warranty
$4,047.00
Buy Now And Earn 4047 Reward Points!
QUICK OVERVIEW

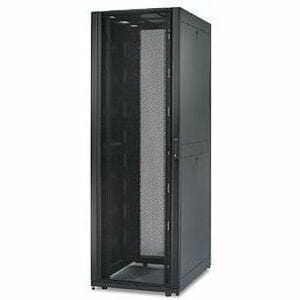

Enclosure with Sides Black AR3150
An industry standard server rack ready for medium to high density environments with height designed to easily fit through standard doorways. Wide rack design allows for additional space beside the vertical mounting rails for passing cabling from front-to-back in the enclosure. It provides plenty of clearance at the back for Rack PDUs and cable managers not to interfere with IT device hot swappable components. The width is ideal for converged and hyperconverged IT which include a mix of server, storage, and network switches all in one rack.
| Application/Usage | Blade Server, Converged Infrastructure |
| Product Type | Rack Cabinet |
| Weight (Approximate) | 155.96 kg |
| Rack Width | 482.60 mm |
| Rack Height | 42U |
| Brand Name | APC by Schneider Electric |
| Height | 1991 mm |
| Width | 750 mm |
| Depth | 1070 mm |
| Product Family | NetShelter |
| TAA Compliant | Yes |
| Product Color | Black |
| Color Family | Black |
| Rack Type | Enclosed Cabinet |
| Manufacturer Part Number | AR3150 |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Packaged Quantity | 1 |
| Manufacturer | Schneider Electric SA |
| Product Name | NetShelter SX, Server Rack Enclosure, 42U, Black, 1991.4H x 750W x 1070D mm |
| Product Line | NetShelter |
| Additional Information | • Adjustable Front Vertical Mounting Rail • Adjustable mounting depth • Cable Access • Deep form factor (42"/1070mm) • Door ventilation exceeds 830 in2 (5355 cm2) • Expanded Cable Management • Facilitates overhead cable management • Facilitates overhead power distribution • Facilitates rear/vertical cable management • Mounts two APC metered PDUs in one rear channel • Multi-vendor equipment compatibility • Numbered U positions • Optimized depth • Protective grounding provisions • Provides Mounting Option for PDUs • Provides security between enclosures when bayed together • Quick release doors • Quick release side panels • Removable doors and side panels • Reversible doors • Rolls through a 2 meter doorway • Ships fully assembled • Split rear doors • Tool-less mounting • UBC Zone 4 stabilization provisions • Ventilated Doors with Scalable Cooling Options • Vertical Mounting Rails with square holes • Wide form factor (29.5"/750mm) |
| For Country/Region | United States |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR3150_ROHS_DECLARATION&p_FileName=AR3150KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=760068&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=760068&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN |
| REACH free of SVHC | Yes |
| Units Per Pallet | 1 |
| Rail Material Gauge | 14 |
| Door Material Gauge | 18 |
| Roof/Top Material Gauge | 18 |
| Side Panel Material Gauge | 18 |
| Static/Stationary Weight Capacity | 1360.78 kg |
| Dynamic/Rolling Weight Capacity | 1020.58 kg |
| Mounting Preference | No Preference |
| Shipping Dimensions | Height 212, Width 120, Length 130, Shipping Weight 100 KG |
NetShelter SX 42U 750mm Wide x 1070mm De
