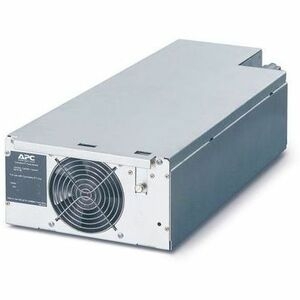

SYMMETRA LX 4KVA POWER MODULE 220/230/240V
OUTPUT POWER CAPACITY: 4,000 VA
OUTPUT POWER CAPACITY: 2,800 Watts
MAX CONFIGURABLE POWER: 4,000 VA
MAX CONFIGURABLE POWER: 2,800 Watts
NOMINAL OUTPUT VOLTAGE: 230V
OUTPUT VOLTAGE: NOTE Config for 220 : 230 or 240 nominal output voltage
CREST FACTOR: up to 5 : 1
WAVEFORM TYPE: Sinewave
OUTPUT CONNECTIONS (1) Hard Wire 3-wire (H N + G)
NOMINAL INPUT VOLTAGE: 230V, 400V 3PH
INPUT FREQUENCY: 45 - 65 Hz (auto sensing)
INPUT VOLTAGE RANGE FOR MAIN OPERATIONS: 155 - 276 (1:1), 290 - 480 (3:1)V
OTHER INPUT VOLTAGES: 220V, 240V, 380V, 415V
MAXIMUM HEIGHT: 6 inches ( 15 cm )
MAXIMUM WIDTH: 10 inches ( 25 cm )
MAXIMUM DEPTH: 22 inches ( 56 cm )
RACK HEIGHT: 4 U
NET WEIGHT: 33 lbs. ( 15 kg )
