Apc Symmetra Lx 8kva Scalable To 16kva N+1 Tower Sya8k16i

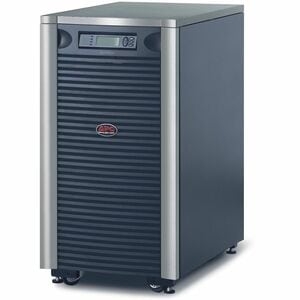

SYMMETRA LX 8KVA SCALABLE TO 16KVA N+1 TOWER
APC Symmetra LX 8kVA Scalable to 16kVA N+1 Tower, 220/230/240V or 480/400/415V.
Brand Name APC
Manufacturer Web Site http://www.apc.com
Product Line Symmetra
Product Model Not defined
Product Type Uninterruptible Power Supply
BATTERY
Type Sealed Lead Acid
CONNECTION
Input Connection#1 1 x Hard Wire 5-wire
Input Connection#2 1 x Hard Wire 3-Wire
Output Connection#1 1 x Hard Wire 3-Wire
SmartSlot Yes
Interface#1 1 x DB-9
Interface#2 1 x SmartSlot
Interface#3 1 x RS-232
POWER
Expandable Power 16kVA
Input Voltage 230Volt
Output Power 5600Watt
Output Voltage 230Volt
Input Frequency 45 - 65Hz
Output Frequency 47 - 63Hz
Waveform Sinewave
DIMENSIONS
Depth (mm) 726.0
Height (mm) 937.0
Width (mm) 483.0
Weight (Kg) 219.6
OTHER FEATURES
Colour Black
Control Panel Multi-function LCD status and control console
Audible Alarm Audible and visible alarms prioritized by severity
Operating Temperature 0 - 40?C
Environmental Compliance RoHS
| Marketing Text | APC Symmetra LX 8kVA Scalable to 16kVA N+1 Tower, 220/230/240V or 480/400/415V. |
| PI Date | Mar 2011 |
| Brand Name | APC |
| Manufacturer Web Site | http://www.apc.com |
| Product Line | Symmetra |
| Product Model | Not defined |
| Product Type | Uninterruptible Power Supply |
| Type | Sealed Lead Acid |
| Input Connection | 1 x Hard Wire 5-wire |
| Output Connection | 1 x Hard Wire 3-Wire |
| SmartSlot | Yes |
| Interface | 1 x DB-9 |
| Expandable Power | 16kVA |
| Input Voltage | 230Volt |
| Output Power | 5600Watt |
| Output Voltage | 230Volt |
| Input Frequency | 45 - 65Hz |
| Output Frequency | 47 - 63Hz |
| Waveform | Sinewave |
| Depth (mm) | 726.0 |
| Height (mm) | 937.0 |
| Width (mm) | 483.0 |
| Weight (Kg) | 219.6 |
| Colour | Black |
| Control Panel | Multi-function LCD status and control console |
| Audible Alarm | Audible and visible alarms prioritized by severity |
| Operating Temperature | 0 - 40°C |
| Environmental Compliance | RoHS |
