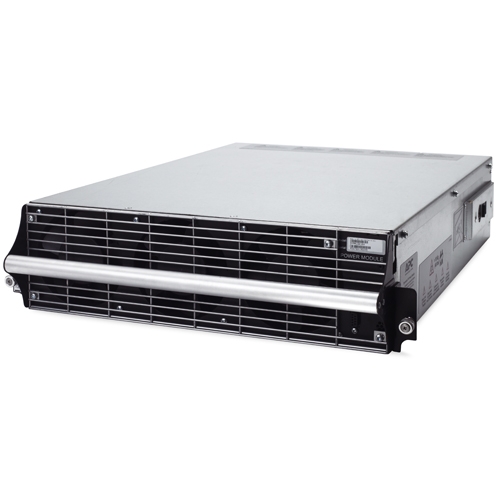

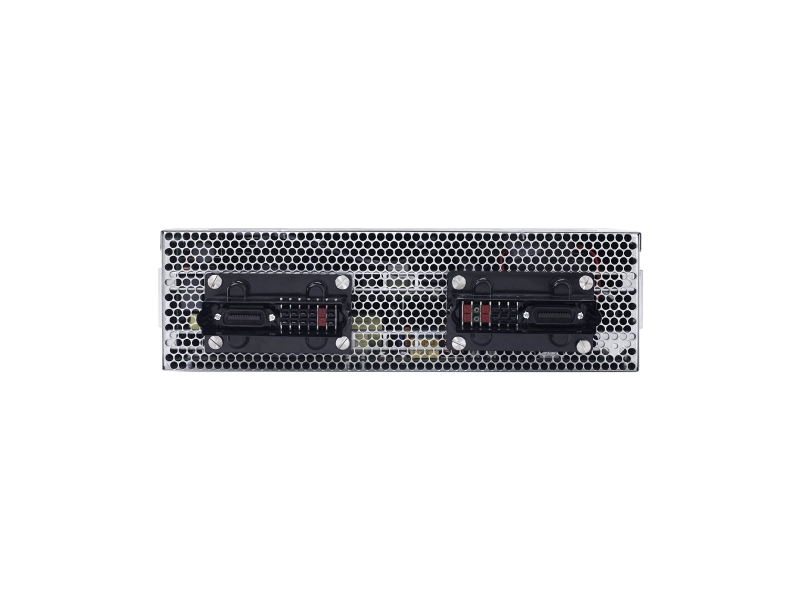

Apc (sypm10k16h) Symmetra Px Power Module, 10/ 16kw, 400v Sypm10k16h

SKU
229779
Brand
MPN
SYPM10K16H
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$11,631.00
Buy Now And Earn 11631 Reward Points!

SYPM10K16HFeatures

APC Symmetra PX Power Module, 10/16kW, 400V

A 16kW high efficiency power module for the Symmetra PX160kW & PX48kW. This power module is backward compatible with the SYPM10KH module and will autodetect to deliver only 10kW of power protection if installed in a PX80kW, 40KW or 20kW all-in-one.

Includes : Installation guide

  • Input power factor correction
    Minimizes installation costs by enabling the use of smaller generators and cabling.
  • Modular design
    Increases adaptability with an open architecture configurable to any IT environment.

Symmetra Power ModuleFeatures & Benefits

Product Distribution

United Arab Emirates , Afghanistan , Albania , Armenia , Argentina , Austria , Australia , Aruba , Azerbaijan , Bosnia and Herzegovina , Bangladesh , Belgium , Bolivia , Brazil , Belarus , The Democratic Republic Of Congo , Central African Republic , Congo , Switzerland , Chile , Cameroon , China , Colombia , Serbia and Montenegro , Cyprus , Czech Republic , Germany , Denmark , Dominican Republic , Algeria , Estonia , Egypt , Eritrea , Spain , Ethiopia , Finland , Fiji , France , United Kingdom , Georgia , Gambia , Guinea , Greece , Hong Kong , Honduras , Croatia , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iran , Iceland , Italy , Jamaica , Jordan , Japan , Kenya , Cambodia , South Korea , Cayman Islands , Kazakhstan , Liechtenstein , Sri Lanka , Lithuania , Luxembourg , Latvia , Myanmar , Mongolia , Malaysia , Netherlands , Norway , New Zealand , Peru , Philippines , Pakistan , Poland , Puerto Rico , Portugal , Paraguay , Romania , Russia , Saudi Arabia , Sudan , Sweden , Singapore , Slovenia , Slovakia , Senegal , Suriname , Chad , Thailand , Tunisia , TP , Turkey , Ukraine , Uganda , Uruguay , Venezuela , Vietnam , Yemen , South Africa , Zambia , Zimbabwe

Output

  • Output power capacity
    16.0 KWatts / 16.0 kVA
  • Max Configurable Power (Watts)
    16.0 KWatts / 16.0 kVA
  • Nominal Output Voltage
    230V , 400V 3PH
  • Output Voltage Note
    Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
  • Efficiency at Full Load
    95.0 %
  • Output Voltage Distortion
    Less than 2%
  • Output Frequency (sync to mains)
    50/60 Hz +/- 3 Hz user adjustable +/- 0.1
  • Output Frequency (not synced)
    50Hz +/- 0.1% for 50Hz nominal
  • Load Crest Factor
    Unlimited
  • Topology
    Double Conversion Online
  • Overload Operation
    10 minutes @ 125% and 60 seconds @ 150%
  • Output Connections
    (1) Hard Wire 5-wire (3PH + N + G) (Battery Backup)
  • Output Voltage THD
    < 2% for 0 to 100% linear load and < 6% for full non linear load
  • Output Voltage Tolerance
    +/-1% static and +/- 5% at 100% load step

Input

  • Nominal Input Voltage
    400V 3PH
  • Input frequency
    40 - 70 Hz
  • Input Connections
    Hard Wire 5-wire (3PH + N + G)
  • Input voltage range for main operations
    340 - 477V
  • Efficiency at Full Load
    95.0 %
  • Input Total Harmonic Distortion
    Less than 5% for full load
  • Maximum Short Circuit Withstand (Icw)
    30.0kAmps
  • Maximum Input Current
    33.0A
  • Input Power Factor at Full Load
    0.99

Physical

  • Maximum Height
    132mm , 13.2cm
  • Maximum Width
    483mm , 48.3cm
  • Maximum Depth
    700mm , 70.0cm
  • Rack Height
    3U
  • Net Weight
    28.5kg
  • Shipping weight
    31.55kg
  • Shipping Height
    225mm , 22.5cm
  • Shipping Width
    595mm , 59.5cm
  • Shipping Depth
    700mm , 70.0cm
  • Units per Pallet
    8.0

Environmental

  • Operating Environment
    0 - 40 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-999.9meters
  • Storage Temperature
    -15 - 40 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-4500meters
  • Audible noise at 1 meter from surface of unit
    63.0dBA
  • Online thermal dissipation
    2573.0BTU/hr
  • Protection Class
    NEMA 1

Conformance

  • Approvals
    CE, EN 50091-1, EN 50091-3, FCC Part 15 Class A, VFI-SS-111
  • Standard warranty
    1 year repair or replace
