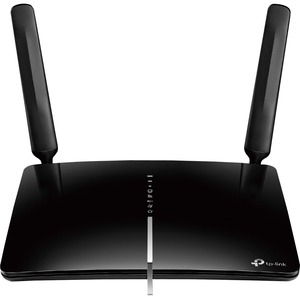

TP-Link Archer MR600 AC1200 4G Lte Advanced Cat6 Gigabit Router With Build-in 300Mbps 4G+ Lte Advanced Modem Archer MR600
SKU
420205
Brand
MPN
Archer MR600
Warranty
Standard Manufacturer's Warranty
$305.00
Buy Now And Earn 305 Reward Points!
TP-Link Archer MR600 AC1200 4G LTE Advanced Cat6 Gigabit Router, build-in 300Mbps 4G+ LTE Advanced modem, LTE-FDD/LTE-TDD/DC-HSPA+/HSPA+/HSPA/UMTS, with 3x10/100/1000Mbps LAN ports and 1x10/100/1000Mbps LAN/WAN port, 300Mbps at 2.4GHz + 867Mbps at 5GHz, Tether App, Cloud support
| Brand | TP-Link |
|---|---|
| Model | Archer MR600 |
| Notes | Hardware revisions V1/V2/V3 exist; V2 reported to use a micro-SIM slot, V3 uses a nano-SIM and includes antenna improvements. Check the unit label/manual for exact hardware version and SIM type. |
| Power | Adapter Input: 100–240 V ~ 50/60 Hz 0.6 A Adapter Output: 12 V DC, 1.5 A |
| Antenna | 2 × detachable external 4G LTE antennas (SMA-F) |
| Buttons | WPS/Reset Wi‑Fi On/Off Power On/Off |
| MU-MIMO | Yes |
| Category | Networking > Routers and Components |
| Security | 64/128-bit WEP WPA/WPA2 WPA-PSK/WPA2-PSK DoS protection IPv4 SPI Firewall IPv6 Firewall IP and MAC address binding Access Control / Parental Controls |
| Protocols | IPv4 IPv6 |
| Management | Web management (HTTP/HTTPS) TP-Link Cloud (remote management) TP-Link Tether app (mobile management) Local and remote management CWMP (TR-069) |
| Description | The TP-Link Archer MR600 is an AC1200 dual-band 4G+ (Cat6) LTE Wi‑Fi router with integrated modem and a built-in SIM slot for plug-and-play mobile broadband. It delivers combined wireless speeds up to 1.2 Gbps (300 Mbps on 2.4 GHz + 867 Mbps on 5 GHz), supports carrier aggregation (4G+ Cat6) for boosted LTE download speeds (up to ~300 Mbps), and provides full gigabit Ethernet connectivity with one port configurable as WAN. The MR600 includes two detachable external LTE antennas, MU‑MIMO for improved multi-device performance, TP‑Link OneMesh™ compatibility, WAN failover/Wi‑Fi router mode, and management via web UI, TP‑Link Cloud and the Tether app. Security and network features include WPA/WPA2 encryption, SPI/DoS firewall, IP/MAC binding, parental controls, QoS (bandwidth control), VPN (PPTP, OpenVPN, IPSec), DHCP, dynamic DNS, and guest networks for both bands. Hardware revisions (V1/V2/V3) differ in SIM slot size and antenna design — check the device label/manual for your version. |
| Device Type | 4G+ Cat6 LTE Router (AC1200 Dual-Band) |
| VPN Support | PPTP VPN OpenVPN IPSec VPN |
| Wi-Fi Bands | 2.4 GHz 5 GHz |
| LTE Category | Cat6 (4G+ carrier aggregation) |
| Certification | CE RoHS |
| Product Title | TP-Link Archer MR600 AC1200 Dual-Band 4G+ Cat6 LTE Gigabit Router |
| SIM Card Slot | Nano SIM (V3) / Micro SIM (V2); check hardware version (some units/carrier packages may be preconfigured or shipped with a SIM) |
| Ethernet Ports | 4 × Gigabit Ethernet ports (3 × LAN, 1 × LAN/WAN configurable) |
| OneMesh Support | Yes (TP-Link OneMesh™ compatible) |
| Wi-Fi Standards | IEEE 802.11a/n/ac (5 GHz) IEEE 802.11b/g/n (2.4 GHz) |
| Wireless Speeds | 5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mbps |
| Storage Humidity | 5% to 90% non-condensing |
| Hardware Versions | V1 V2 V3 |
| Wireless Features | Enable/Disable Wireless Radio Wireless Schedule WMM Wireless Statistics Guest Network (1 on 2.4 GHz, 1 on 5 GHz) |
| Operating Humidity | 10% to 90% non-condensing |
| Quality of Service | Bandwidth Control |
| Transmission Power | 5 GHz: < 23 dBm 2.4 GHz: < 20 dBm |
| Operating Temperature | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) |
| Dimensions (W x D x H) | 202 × 141 × 33.6 mm (7.95 × 5.55 × 1.32 in) |
| Supported Mobile Bands | FDD-LTE: [ "B1 (2100 MHz)", "B3 (1800 MHz)", "B5 (850 MHz)", "B7 (2600 MHz)", "B8 (900 MHz)", "B20 (800 MHz)", "B28 (700 MHz)" ] TDD-LTE: [ "B38 (2600 MHz)", "B40 (2300 MHz)", "B41 (2500 MHz)" ] 3G (DC-HSPA+/HSPA/UMTS): [ "B1 (2100 MHz)", "B5 (850 MHz)", "B8 (900 MHz)" ] |
| WAN / Network Features | WAN failover Wi‑Fi router mode (use LAN/WAN port as Ethernet WAN) WAN types: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access) |
| Carrier / Provider Notes | Some carriers or resellers may ship units with a pre-inserted SIM and preconfigured APN/profile (carrier-specific). |
| DHCP / NAT / Port Services | DHCP Server, DHCP Client List, Address Reservation ALG, Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS: TP-Link, DynDNS, NO-IP |
| Reception Sensitivity (selected) | 5 GHz: { "11a 54M": "-77 dBm", "11n HT20": "-77 dBm", "11n HT40": "-73 dBm", "11ac HT20": "-73 dBm", "11ac HT40": "-68 dBm", "11ac HT80": "-64 dBm" } 2.4 GHz: { "11g 54M": "-74 dBm", "11n HT20": "-72 dBm", "11n HT40": "-69 dBm" } |
| Maximum Concurrent Wireless Devices | Up to 64 devices (typical recommendation cited) |
| Carrier Aggregation / CA Combinations | B1+B3/B5/B7/B8/B20 B3+B1/B3/B5/B7/B8/B20/B28/B38/B40 B5+B1/B3/B5/B7/B40 B7+B1/B3/B5/B7/B8/B20/B28 B8+B1/B3/B7 B20+B1/B3/B7 B28+B3/B7/B40 B38+B38 B40+B40 B41+B41 |
| Package Contents (standard TP-Link box) | Archer MR600 router Power adapter (1.5 m) RJ45 Ethernet cable Quick Installation Guide |
TP-Link Archer MR600 AC1200 4G LTE Advanced Cat6 Gigabit Router with build-in 300Mbps 4G+ LTE Advanced modem
