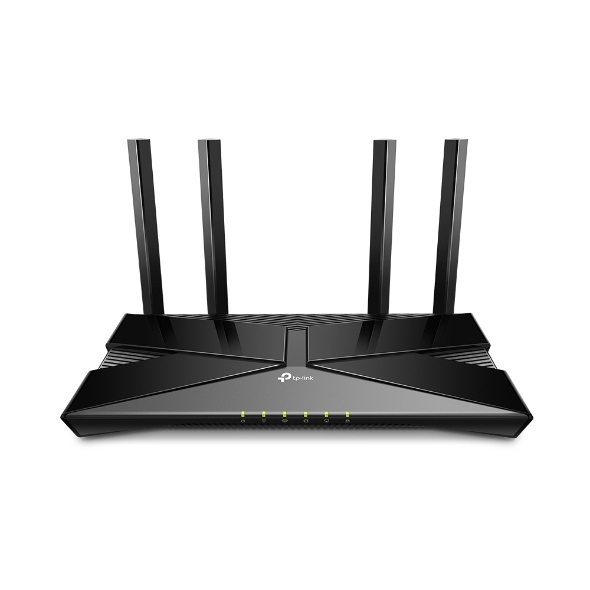

TP-LINK ARCHER AX1800 AX1800 DUAL-BAND WI-FI 6 ROUTER, 3YR ARCHERAX1800

SKU
406103
Brand
MPN
ARCHER AX1800
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$133.00
Buy Now And Earn 133 Reward Points!
WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX1800
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 2-3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity High
Dual-Band
Allocate devices to different bands for optimal performance

Airtime Fairness
Improves network efficiency by limiting excessive occupation

4 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
HARDWARE
Processor Dual-Core CPU
Ethernet Ports 1× Gigabit WAN Port
4× Gigabit LAN Ports
Buttons WPS/Wi-Fi Button
Power On/Off Button
Reset Button
Power 12 V ⎓ 1 A
SECURITY
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP
SOFTWARE
Protocols IPv4
IPv6
OneMesh™ OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
Parental Controls URL Filtering
Time Controls
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
Check Web Emulator>
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity EU Version
5G
11a 6Mbps: -96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -71dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -66dbm
11ac VHT80_MCS0: -89dbm
11ac VHT80_MCS9:-62dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -64dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -60dbm
11ax HE80_MCS0: -89dbm
11ax HE80_MCS11:-59dbm

2.4G
11g 6Mbps:-96dbm
11g 54Mbps:-75dbm
11n HT20_MCS0:-95dbm
11n HT20_MCS7:-75dbm
11n HT40_MCS0:-92dbm
11n HT40_MCS7: -72dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm

US Version
5G
11a 6Mbps: -96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -71dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -66dbm
11ac VHT80_MCS0: -89dbm
11ac VHT40_MCS9:-62dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -64dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -60dbm
11ax HE80_MCS0: -89dbm
11ax HE80_MCS11:-59dbm

2.4G
11g 6Mbps:-96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm
PHYSICAL
Dimensions (W×D×H) 10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)
Package Contents Wi-Fi Router Archer AX23
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
