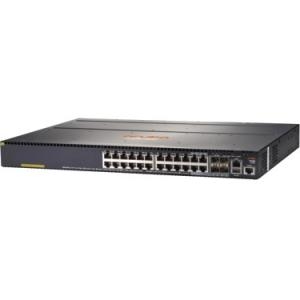

Hpe Aruba 2930m 24g Poe+ With 1-slot Switch Jl320a

SKU
245643
Brand
Hp
Manufacturer Link
MPN
JL320A
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$5,384.00
Buy Now And Earn 5384 Reward Points!
Add to Compare

These Layer 3 access switches are easy to deploy, provision and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave.

Power and grow your network with high performance stacking and resilient PoE+ power.

Enhanced security with Tunnel Node for a secured tunnel to Aruba Controller for unifed policy enforcement for traffic from both wired and wireless devices.

  • 802.11ac-ready wired network

    Multi-gigabit Ethernet with PoE+ for high speed 802.11ac APs using existing cabling.

  • Power and performance

    10 chassis stacking, 40GbE uplinks and up to 1440W PoE+.

  • Simple deployment

    With Zero Touch Provisioning and support from cloud-based Aruba Central, you can quickly set up remote offices with little or no IT support.

  • I/O PORTS AND SLOTS
    • 24G 1-slot Switch (JL319A):
      • 20 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T)
    • 24G PoE+ 1-slot Switch (JL320A):
      • 20 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T, IEEE 802.3at PoE+)
    • 48G 1-slot Switch (JL321A):
      • 44 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T)
    • 48G PoE+ 1-slot Switch (JL322A):
      • 44 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T, IEEE 802.3at PoE+)
    • All Switches (JL319A - JL322A):
      • Duplex: 10BASE-T/100BASE-TX: half or full
      • 1000BASE-T: full only
      • 4 Combo 10/100/1000BASE-T or 100/1000 Mbps SFP Ports
    ADDITIONAL PORTS AND SLOTS
    • 1 Dual Personality (RJ-45 or USB Micro-B) serial console port
    • 1 USB B port for uploading/ downloading files
    • 1 100BASE-T Out of Band Management Port
    • 1 Uplink Slot
    • 1 Stacking Module Slot
    • 2 Power Supply Slots (power supplies not included)
    • See datasheet for the list of modules and accessories
    MEMORY AND PROCESSOR
    • Dual Core ARM Cortex A9 @ 1016 MHz
    • 1 GB DDR3 SDRAM
    • Packet Buffer Size: 12.38 MB 4.5 MB Ingress / 7.875 MB Egress
    • 4GB eMMC
    PHYSICAL CHARACTERISTICS
    • Dimensions:
      • (H) 4.39 cm x (W) 44.25 cm x (D) 32.43 cm
        (1.73" x 17.42" x 12.77")
    • Weight:
      • 24G Switch (JL319A): 4.50 kg (9.81 lbs)
      • 24G PoE+ Switch (JL320A): 4.45 kg (9.92 lbs)
      • 48G Switch (JL321A): 4.60 kg (10.14 lbs)
      • 48G PoE+ Switch (JL322A): 4.65 kg (10.25 lbs)
    PERFORMANCE
    • 10 Mbps Latency: <98.5µs (FIFO 64 byte packets)
    • 100 Mbps Latency: <11.8µs (FIFO 64-byte Packets)
    • 1000 Mbps Latency: <3.1 µs (FIFO 64-byte packets)
    • 10 Gbps Latency: <3.4µs (FIFO 64-byte packets)
    • 1000 Mb Latency: <3.8 µs (64-byte packets)
    • Routing table size: 2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
    • MAC address table size: 32768 entries
    • 24G/24G PoE+ Switch (JL319A, JL320A):
      • Throughput: 95.2 Mpps
      • Switching capacity: 128 Gbps
      • Switching Capacity (including stacking): 228 Gbps
    • 48G/48G PoE+ Switch (JL321A,JL322A):
      • Throughput: up to 112 Mpps
      • Switching capacity: 176 Gbps
      • Switching Capacity (including stacking): 276 Gbps
    ENVIRONMENTAL
    • Operating temperature:
      • 32˚F to 131˚F (0˚C to 55˚C) up to 5000ft, 32˚F to 122˚F (0˚C to 50˚C)
      • Derate -1˚C for every 1000 ft from 5000 ft to 10000 ft
    • Operating Relative Humidity: 15% to 95%, (non-condensing) 10,000 ft
    • Non-Operating/ Storage Temperature: -40˚C to +70˚C up to 15000 ft
    • Non-Operating/ Storage Relative Humidity: 90% at 65˚C (non-condensing); 15,000 ft
    • Acoustic: See data sheet
    • Primary Airflow Direction: Port to power
  • ELECTRICAL CHARACTERISTICS
    • Frequency: 50/60 Hz
    • Voltage: See data sheet
    • Maximum heat dissipation: See data sheet
    • Current: See data sheet
    • Maximum power rating: See data sheet
    • Idle power: See data sheet
    • Hibernate Power: 7W
    • PoE Power (max possible):
      • 720 W (24G PoE+ switch, JL320A)
      • 1440 W (48G PoE+ switch, JL322A)
    • Notes:
      • Idle power is the actual power consumption of the device with no ports connected.
      • Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
    SAFETY
    • UL 60950-1, 2nd Edition
    • EN 60950-1:2006 +A11:2009 : A1:2010 +A12:2011 +A2:2013
    • IEC60950-1:2005 +A1:2009 +A2:2013
    • CSA 22.2 No. 60950-1-07 2nd
    • EN60825-1:2007 /IEC 60825-1:2007 Class 1
    EMISSIONS
    • VCCI Class A
    • CNS 13438
    • ICES-003 Class A
    • FCC CFR 47 Part 15, Class A
    • EN 55022: 2010/CISPR-22, Class A
    IMMUNITY
    • Generic: EN 55024:2010/CISPR 24
    • ESD: IEC 61000-4-2
    • Radiated: IEC 61000-4-3
    • EFT/Burst: IEC 61000-4-4 Surge IEC 61000-4-5
    • Conducted: IEC 61000-4-6
    • Power frequency magnetic field: IEC 61000-4-8
    • Voltage dips and interruptions: IEC 61000-4-11
    • Harmonics: EN 61000-3-2, IEC 61000-3-2
    • Flicker: EN 61000-3-3, IEC 61000-3-3
    MANAGEMENT AND MONITORING
    • Aruba Central
    • Aruba AirWave Network Management
    • IMC—Intelligent Management Center
    • Command-line interface
    • Web browser
    • Configuration menu
    • SNMP manager
    • Telnet
    • RMON1
    • FTP
    • Out-of-band management (serial RS-232C, micro USB, Ethernet)
