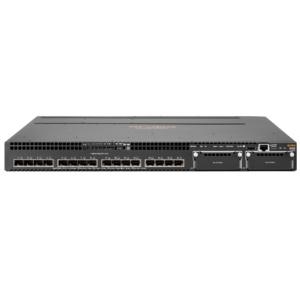

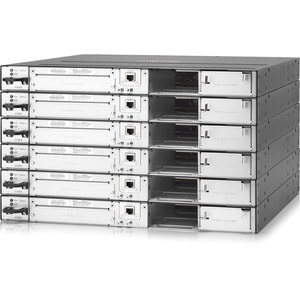

Aruba 3810M 16Sfp+ 2-Slot Swch Jl075A
SKU
291631
Brand
MPN
JL075A
Warranty
Standard Manufacturer's Warranty
$18,112.00
Buy Now And Earn 18112 Reward Points!
The Aruba 3810 Switch Series provides performance and resiliency for the digital workplace campus network. Based on a powerful ProVision ASIC and ready for high-speed APs with HPE Smart Rate multi-gigabit Ethernet, the Aruba 3810 delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity.
| I/O Expansions | |
|---|---|
| Expansion Slot Type: | SFP+ |
| Number of SFP+ Slots: | 16 |
| Number of Total Expansion Slots: | 18 |
| Shared SFP Slot: | No |
| Interfaces/Ports | |
|---|---|
| Modular: | Yes |
| Port/Expansion Slot Details: | 16 x 10 Gigabit Ethernet Expansion Slot |
| 2 x Expansion Slot | |
| Stack Port: | Yes |
| Uplink Port: | Yes |
| Management & Protocols | |
|---|---|
| Manageable: | Yes |
| Media & Performance | |
|---|---|
| Ethernet Technology: | 10 Gigabit Ethernet |
| Media Type Supported: | Optical Fiber |
| Network Technology: | 10GBase-X |
| Miscellaneous | |
|---|---|
| Environmentally Friendly: | Yes |
| Network & Communication | |
|---|---|
| Layer Supported: | 3 |
| Physical Characteristics | |
|---|---|
| Compatible Rack Unit: | 1U |
| Depth: | 431.3 mm |
| Form Factor: | Rack-mountable |
| Height: | 43.9 mm |
| Weight (Approximate): | 6.02 kg |
| Width: | 442.5 mm |
| Power Description | |
|---|---|
| Power Source: | Power Supply |
| Redundant Power Supply Supported: | Yes |
| Marketing Text | The Aruba 3810 Switch Series provides performance and resiliency for the digital workplace campus network. Based on a powerful ProVision ASIC and ready for high-speed APs with HPE Smart Rate multi-gigabit Ethernet, the Aruba 3810 delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity. |
| PI Date | Sep 2016 |
| Brand Name | HP |
| Manufacturer Web Site | http://www.hp.com |
| Form Factor | 1U |
| Product Model | 3810M 16SFP+ |
| Product Type | Ethernet Switch |
| Switching Fabric | 480Gbps |
| Forwarding Rate | 285.7Mpps |
| Packet Buffer | 13.5MB |
| Mac Address | 64Kentries |
| Gigabit Ethernet Port | Yes |
| No. of Ports | 16 |
| Type | 1000/10000 |
| Console Ports | 1 |
| No. of Expansion Slots | 1 |
| Depth (mm) | 431.3 |
| Height (mm) | 43.9 |
| Width (mm) | 442.5 |
| Weight (Kg) | 5.8 |
| Layer Support | 3 |
| Management Type | Managed |
| Management Features | * Aruba AirWave Network Management * IMC - Intelligent Management Center * Command-line interface * Web browser * Configuration menu * Out-of-band management (RJ-45 Ethernet) |
| Memory | 2GB |
| Network Technology | 10/100/1000 |
| VLAN | * VLAN support and tagging * MAC-based VLAN * Rapid Per-VLAN Spanning Tree (RPVST+) |
| Security Features | * Source-port filtering * RADIUS/TACACS+ * Secure shell * Secure Sockets Layer (SSL) * Port security |
| Quality of Service (QoS) | * Advanced classifier-based QoS * Layer 4 prioritization * Class of Service * Remote intelligent mirroring |
| Multi-Cast Features | * IP multicast snooping(data-driven IGMP) * IP multicast routing |
| Other Features | * Memory and processor: Dual ARM Coretex A9 at 1 GHz, 2 GB DDR3 SDRAM |
