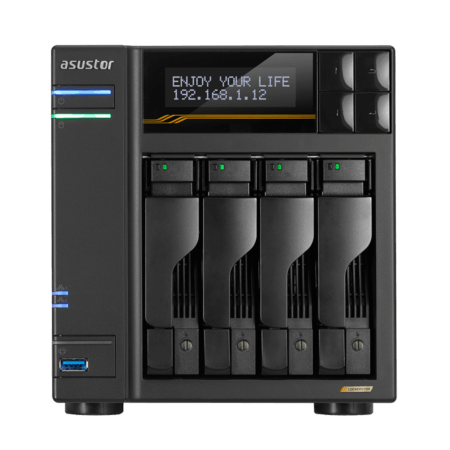

Asustor 4-Bay Nas 3.5"/2.5"(0/4), QC-2.3GHz, 16GB, M.2(4), 5G(2), 10G(2), PCIe, Twr, 3YR AS6804T
SKU
424309
Brand
MPN
AS6804T
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$2,106.00
Buy Now And Earn 2106 Reward Points!
Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz - 3.8 GHz Turbo
16GB of server-grade DDR5-4800 ECC memory (Max 64GB)
Quad M.2 slots for NVMe SSDs – Doubled Performance with PCIe 4.0
2x USB4 ports at 40 Gbps
3x USB 3.2 Gen 2 Type-A at 10 Gbps
2x 10-Gigabit Ethernet
2x 5-Gigabit Ethernet
Supports Wake on LAN and Wake on WAN (5 GbE)
16GB of server-grade DDR5-4800 ECC memory (Max 64GB)
Quad M.2 slots for NVMe SSDs – Doubled Performance with PCIe 4.0
2x USB4 ports at 40 Gbps
3x USB 3.2 Gen 2 Type-A at 10 Gbps
2x 10-Gigabit Ethernet
2x 5-Gigabit Ethernet
Supports Wake on LAN and Wake on WAN (5 GbE)
| Size | 185.5(H) x 170(W) x 230(D) mm |
| Memory | 16GB ECC DDR5-4800 SO-DIMM |
| Weight | 3.2 kg / 7.06 lb |
| Network | 2x 5 Gigabit Ethernet (5G/2.5G/1G/100M) 2x 10 Gigabit Ethernet (10G/2.5G/1G/100M) |
| Humidity | 5% to 95% RH |
| Warranty | 3 Years |
| CPU Model | AMD Ryzen V3C14 |
| Expansion | 3 x USB 3.2 Gen 2 ( 10Gbps ) Type-A 2 x USB 4.0 (40Gbps) Type-C Note. USB 4.0 is backward compatible with 3.2 Gen2 (10Gbps max), USB 3.2 Gen1 (5Gbps) and 2.0 |
| LCD Panel | Yes |
| Drive Bays | 4 |
| System Fan | 1x 120mm |
| Noise Level | 17.6dB (HDD idle) |
| Flash Memory | 8GB eMMC |
| CPU Frequency | Quad-Core 2.3GHz (burst up 3.8 GHz) |
| Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA |
| M 2 Drive Slots | 4 |
| CPU Architecture | x64 64-bit |
| Multimedia Output | N/A |
| Power Consumption | 34 W (Operation); 23 W (Sleep Mode) |
| Total Memory Slots | 2 |
| Input Power Voltage | 100V to 240V AC |
| Storage Temperature | -20°C~70°C (-4°F~158°F) |
| PCIe Expansion Slots | PCIe 4.0, x4 link, (for optional 10 GbE card) |
| Compatible Drive Type | 3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe |
| Operation Temperature | 0°C~40°C (32°F~104°F) |
| Memory Expandable up to | 64GB (2x 32GB) |
| Memory Module Pre-installed | 16GB (1x 16GB) |
| Power Supply Unit / Adapter | 90W x1 |
| Supports Hot Swappable Drives | Yes |
| Maximum Drive Bays with Expansion Unit | 24 |
Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz - 3.8 GHz Turbo
