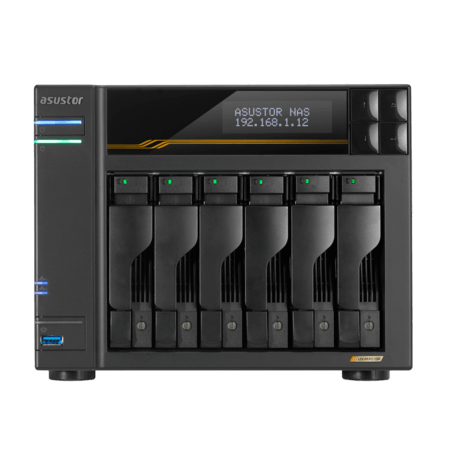

ASUSTOR 6-BAY NAS 3.5"/2.5"(0/6), QC-2.3GHz, 16GB, M.2(4), 5G(2), 10G(2), PCIe, TWR, 3YR AS6806T

SKU
427722
Brand
Asustor
Manufacturer Link
MPN
AS6806T
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$2,360.00
Buy Now And Earn 2360 Reward Points!
Add to Compare

Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz - 3.8 GHz Turbo 16GB of server-grade DDR5-4800 ECC memory (Max 64GB) Quad M.2 slots for NVMe SSDs – Doubled Performance with PCIe 4.0 2x USB4 ports at 40 Gbps 3x USB 3.2 Gen 2 Type-A at 10 Gbps 2x 10-Gigabit Ethernet 2x 5-Gigabit Ethernet Supports Wake on LAN and Wake on WAN (5 GbE)

CPU Model AMD Ryzen V3C14
CPU Architecture x64 64-bit
CPU Frequency Quad-Core 2.3GHz (burst up 3.8 GHz)
Memory 16GB ECC DDR5-4800 SO-DIMM
Memory Module Pre-installed 16GB (1x 16GB)
Total Memory Slots 2
Memory Expandable up to 64GB (2x 32GB)
Flash Memory 8GB eMMC
Drive Bays 6
M 2 Drive Slots 4
Compatible Drive Type 3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe
Maximum Drive Bays with Expansion Unit 26
Supports Hot Swappable Drives Yes
Expansion 3 x USB 3.2 Gen 2 ( 10Gbps ) Type-A 2 x USB 4.0 (40Gbps) Type-C Note. USB 4.0 is backward compatible with 3.2 Gen2 (10Gbps max), USB 3.2 Gen1 (5Gbps) and 2.0
Network 2x 5 Gigabit Ethernet (5G/2.5G/1G/100M) 2x 10 Gigabit Ethernet (10G/2.5G/1G/100M)
PCIe Expansion Slots PCIe 4.0, x4 link, (for optional 10 GbE card)
Multimedia Output N/A
System Fan 1x 120mm
LCD Panel Yes
Power Supply Unit / Adapter 250W x1
Input Power Voltage 100V to 240V AC
Certification FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Warranty 3 Years
Power Consumption 45 W (Operation); 2.3 W (Sleep Mode)
Noise Level 18.1dB (HDD idle)
Operation Temperature 0°C~40°C (32°F~104°F)
Storage Temperature -20°C~70°C (-4°F~158°F)
Humidity 5% to 95% RH
Size 185.5 (H) x 233 (W) x 230 (D) mm
Weight 4.4 kg / 9.7 lb
ASUSTOR 6-BAY NAS 3.5"/2.5"(0/6), QC-2.3GHz, 16GB, M.2(4), 5G(2), 10G(2), PCIe, TWR, 3YR
