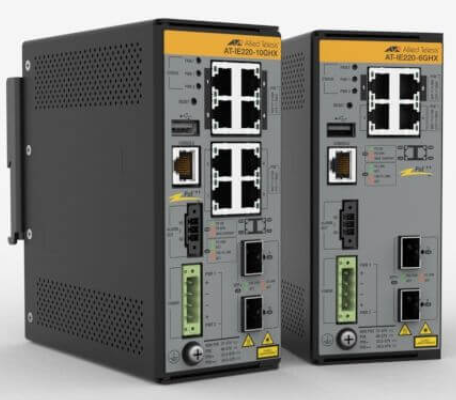

Allied Telesis 8x 10/100/1000T, 2x 1G/10G Sfp+, Industrial Ethernet, Layer 2+ Switch, PoE++ Support AT-IE220-10GHX-980
SKU
407586
Brand
MPN
AT-IE220-10GHX-980
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$1,809.00
Buy Now And Earn 1809 Reward Points!
Allied Telesis 8x 10/100/1000T, 2x 1G/10G SFP+, Industrial Ethernet, Layer 2+ Switch, PoE++ Support
| PoE | Yes (PoE / PoE+ / PoE++ support, IEEE 802.3af/at/bt) |
|---|---|
| SKU | AT-IE220-10GHX-980 |
| UPC | 767035231129 |
| Brand | Allied Telesis |
| Model | IE220-10GHX |
| Ports | 8 x 10/100/1000Base-T (RJ-45) PoE-capable |
| Series | IE220 |
| Weight | DIN rail (reported): 1.60 kg (3.53 lbs) Wall mount (reported): 1.49 kg (3.28 lbs) |
| Warranty | 5 Year limited warranty |
| Manageable | Yes |
| PoE Budget | 240 W (total) |
| Description | Industrial-grade, fanless managed Ethernet switch designed for harsh environments. The Allied Telesis IE220-10GHX provides 8 x 10/100/1000Base-T PoE-capable ports and 2 x 1G/10G SFP+ uplinks with a 240 W PoE budget, supporting IEEE 802.3bt PoE++ for high-power devices. Built for OT, security and outdoor applications, it runs AlliedWare Plus OS and offers Layer 2+ switching with advanced features including VLANs, QoS, LACP, EPSRing/MRP high-availability, OpenFlow v1.3, NETCONF/RESTCONF + YANG, Active Fiber Monitoring, and extensive cybersecurity and management protocols. Hardened aluminium enclosure with DIN-rail and wall-mount options, IP30 protection, extended operating range (-40°C to 75°C), and 5-year limited warranty. |
| Total Ports | 10 |
| Port Details | SFP+ Slots: 2 RJ45 PoE Ports: 8 Additional Interfaces: 1 x alarm (3-pin terminal block), 1 x serial (console) RJ-45, 1 x USB 2.0 Type A |
| Product Line | Allied Telesis AT |
| Uplink Ports | 2 x 1G/10G SFP+ (1/10 Gigabit SFP+ slots) |
| Environmental | Operating Humidity: 5 - 95% (non-condensing) Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F) Operating Temperature: -40 °C to 75 °C (-40 °F to 167 °F) |
| Product Title | Allied Telesis IE220-10GHX Industrial 8-Port Gigabit PoE++ Switch (2x 1G/10G SFP+, 240W PoE) |
| Layer Supported | Layer 2+ (some sources list Layer 4 capabilities) |
| Additional Notes | Power supply sold separately. Optional premium feature license (AT-IE220-FL01) enables 10G uplinks and advanced Hi-PoE / PoE++ sourcing features. |
| Operating System | AlliedWare Plus |
| Package Contents | IE220-10GHX Ethernet Switch DIN Rail Wall Mount |
| Protection Rating | IP30 |
| Replacement Model | AT-IE220-10GHX-K90 |
| Advanced Switching | Layer 2+ (managed); supports static routing and advanced L2 features |
| Enclosure Material | Aluminium / Sheet Metal |
| Physical Dimensions | Width x Depth x Height: 65 x 137 x 155 mm (2.56 x 5.39 x 6.12 in) Alternate Dimensions Reported: Width 6.1 in, Height 2.6 in, Depth 5.4 in |
| Power Characteristics | Cooling: Fanless Power Source: DC (external power supply / redundant power connector available; power supply sold separately) Input Voltage: 37 - 57 V DC (sources list 57 V DC as nominal) Redundant Power: RPS/Redundant power connector supported No PoE Power Consumption: 18.5 W Full PoE Load Max Power Consumption: 266 W (reported) |
| Switching Performance | Latency: { "1 Gbps": "2.78 µs", "10 Gbps": "2.33 µs", "100 Mbps": "11.9 µs" } Buffer Capacity: 2 MB Forwarding Rate: 41.7 Mpps Priority Queues: 8 VLANs Supported: Up to 4000 Multicast Groups: 1023 Switching Fabric: 56 Gbps MAC Address Table: 16K entries Jumbo Frame Support: 12 KB |
| Form Factor & Mounting | DIN rail mountable; Wall-mountable |
| Interfaces & Indicators | Alarm/IO: 1 x alarm 3-pin terminal block Status Indicators: Fault, Link/activity, PoE, Power 1, Power 2 |
| Per-Port PoE Capability | Supports IEEE 802.3bt PoE++ (high-power per-port capability; actual per-port allocation depends on power budget and configuration) |
| Manufacturer Part Number | AT-IE220-10GHX-980 |
| Feature License (optional) | AT-IE220-FL01 (IE220 Series Premium license — 10G uplink ports; Hi-PoE sourcing; PoE++ sourcing) |
| Certifications & Compliance | TAA Compliant RoHS, REACH, WEEE, China RoHS FCC, UL, IEC standards (multiple IEC/EN safety and EMC standards reported) NEMA TS-2, ITU-T G.8032 |
| Management & Remote Management | CLI HTTP HTTPS SNMP v1/v2c/v3 NETCONF RESTCONF YANG RMON SSH Telnet Syslog TFTP SCP |
| Networking & Security Features | VLAN, QoS, LAG/LACP EPSRing™, ITU-T G.8032, MRP client (high availability) Active Fiber Monitoring (AFM) AMF Plus (Autonomous Management Framework) support NETCONF/RESTCONF + YANG data modelling Dynamic PoE allocation, Continuous PoE (CPoE) DHCP snooping, Dynamic ARP Inspection, ACLs, RADIUS, TACACS+, DoS protection, Storm protection, BPDU protection sFlow, RSPAN, LLDP-MED, UPstream Forwarding Only (UFO), Cable fault locator (TDR) |
| Supported Protocols & Standards | IEEE 802.1Q, 802.1p, 802.1x, 802.1D, 802.1w, 802.1s, 802.1ad, 802.1ag, 802.1AX IEEE 802.3, 802.3u, 802.3ab, 802.3ac, 802.3ad (LACP), 802.3ae, 802.3an, 802.3az, 802.3af, 802.3at, 802.3bt IGMP v1/v2/v3, MLD, MSTP, RSTP, STP OpenFlow v1.3 (SDN) |
