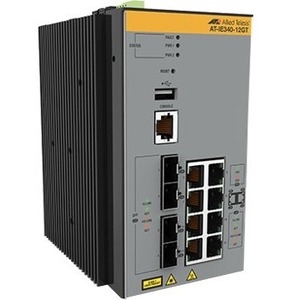

Allied Telesis 8x 10/100/1000T POE+ ports, 4x 100/1000X SFP, Advanced L3 industrial switch, DC power supplies. AT-IE340-12GP-80
SKU
394238
Brand
MPN
AT-IE340-12GP-80
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$1,706.00
Buy Now And Earn 1706 Reward Points!
3 Layer Supported - Modular - 240 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable, Wall Mountable
General Information
Manufacturer
Allied Telesis, Inc
Manufacturer Part Number
AT-IE340-12GP-80
Manufacturer Website Address
http://www.alliedtelesis.com
Brand Name
Allied Telesis
Product Series
IE340
Product Model
IE340-12GP
Product Name
Industrial PoE+ Ethernet Layer 3 Switch
Marketing Information
The Allied Telesis IE340-12GP managed switch features 8 x 10/100/1000T PoE+ copper ports and 4 x 100/1000X SFP uplinks. A comprehensive feature-set, and built in security, make it ideal for high-density Industrial Environments.
- 24Gbps switch fabric and 17.8Mpps forwarding packet rate
- 16K MAC addresses
- 4K VLANs
- 9KB jumbo frame size
- 8 QoS priority queues
- 511 (Layer 2), 256 (Layer 3) Multicast groups
- IEEE 802.3at PoE+ sourcing (30W)
- 240W PoE power budget
- Alarm input and output ports
- -40°C to 75°C
Product Type
Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports
8
Modular
Yes
Port/Expansion Slot Details
8 x Gigabit Ethernet PoE+
Port/Expansion Slot Details
4 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T
Network Technology
1000Base-X
I/O Expansions
Number of Total Expansion Slots
4
Expansion Slot Type
SFP (mini-GBIC)
Number of SFP Slots
4
Network & Communication
Layer Supported
3
Management & Protocols
Manageable
Yes
Power Description
PoE (RJ-45) Port
Yes
PoE Budget
240 W
Power Source
Power Supply
Power Source
PoE+
Power Consumption
271 W
Physical Characteristics
Form Factor
DIN Rail Mountable
Form Factor
Wall Mountable
Height
153 mm
Width
91 mm
Depth
139 mm
