Atdec Th-1032-vfm Wall Mount/ Full Motion/ Silver. Fits Most Displays From 15" To 32". Th-1032-vfm

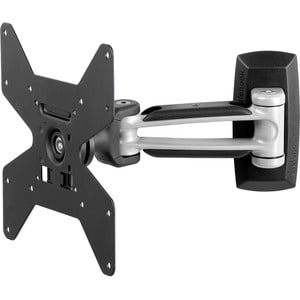

Atdec Telehook TH-1032-VFM Swing-Out Mount for 10"~32" Monitors
The TH-1032-VFM offers sophisticated technology alongside superior aesthetics.
Made from die cast aluminium, this mount has two pivot points and a ball joint
mechanism to give you significant adjustment and complete control over tilt,
pan, and portrait to landscape rotation. This mount comes pre-assembled for
quick and easy installation, with advanced cable management to give you a
professional finish. The quick attachment/quick release mechanism allows you to
install and detach your display in seconds.
Features:
• Offers a full range of movement via two pivot points
• Designed for simple installation
• Quick release mechanism for fast TV attachment/removal
• Ball joint allows infinite TV adjustment of 20? in any direction. Simple
tension adjustment
• Portrait to landscape rotation
• Supports VESA mounting hole configurations: 75mm x 75mm, 100mm x 100mm, 200mm
x 100mm, 200mm x 200mm
• Supports displays up to 25kgs (55lbs)
• Maximum reach from wall 245mm (9.6 ?)
• Minimum distance from wall 90mm (3.5?)
• Advanced internal cable management
• Theft resistant design
• Masonry and timber stud wall mounting hardware included
Product Telehook 10" - 32" Full Motion LCD Wall
Suits 75mm x 75mm, 100mm x 100mm
Maximum Load 25kg
Mounting Compatibility Supports VESA mounting hole configurations:
75mm x 75mm
100mm x 100mm
200mm x 100mm
200mm x 200mm
Finish: Silver/Black
Mounting Plate - Wall Bracket is to be installed vertically.
- Wall Bracket can be mounted to either: Timber Stud Wall, or Masonry Wall
| Marketing Text | The Telehook TH-1032-VFM is a highly flexible wall mount for low weight LED/ LCD displays. The swing arm allows for positional extension and extended pan adjustment while the integrated ball joint allows for fine tilt and pan adjustment along with landscape to portrait screen rotation. |
| PI Date | May 2011 |
| Brand Name | Atdec |
| Manufacturer Web Site | http://www.atdec.com |
| Product Type | Wall Mount |
| Display Size Supported | 15 - 32inch |
| Weight Capacity | 25Kg |
| Tilt | +/-20degree |
| Pan | +/-20degree |
| Mounting Hole Pattern | 75 x 75mm |
| Color | Silver |
| Material | Aluminium/Steel |
| Other Features | * Single swing arm with dual pivot points * Display head allows +/-20º tilt and pan adjustment * Display head allows for full screen rotation * Adjustable wall extension from 90mm (3.5") to 245mm (9.6") * Features hidden wall mounting points and integrated cable management |
| Warranty Information | 10 year warranty if purchased after Jan 1, 2011 |
