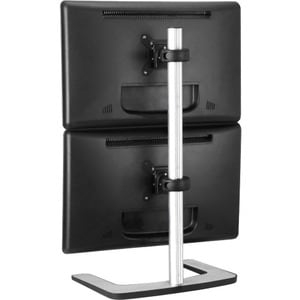

Atdec Visidec Freestanding - Double Vertical Desk Mount (two Monitors) Vfs-dv
The Visidec VFS-DV dual vertical freestanding desk mount is an ideal
accessory for any dual monitor application. Being able to mount two screens one
on top of the other with such versatility of movement creates a superior
workspace for optimum productivity. Both monitors can be independently and
infinitely adjusted up to 20? in any direction and can also be rotated between
landscape and portrait screen orientations. The unique QuickShift™ lever
provides independent height adjustment without the need for a single tool. An
elegant design with a footprint so small, at just 16.6" (422mm) x 12" (305mm),
leaving your desk clear of clutter with the flexibility to be located anywhere
on the desk.
Green Star - Office Interiors compliant product
Improves ergonomics of any work place
Freestanding unit, can be placed anywhere and moved around easily
Both monitors can be adjusted independently using the QuickShift™ mechanism
All mounting hardware included
10 year warranty
BrandVisidec
Desk mounting typeFreestanding
Number of screens supported-
ColorSilver
Compatibility
Maximum supported weight (lbs)26.5
VESA mounting hole pattern75x75, 100x100
Upgradable to multi-screenNo
Upgradable to carry additional notebookNo
Maximum desk thickness allowed (inches)Freestanding unit
Maximum allowed display width (inches)unlimited
Maximum allowed display height (inches)Check Technical Specifications document
Range of movement
Spring assisted height adjustabilityNo
Tilt adjustment20? of display adjustment in any direction
Pan adjustment20? of display adjustment in any direction
Landscape to portrait screen rotationYes
Height adjustableYes
Maximum arm reach (inches)3.5
Installation
Quick release mechanismNo
Cable managementAdvanced cable management
Security featuresSecurity screws included at the mounting head
Mounting hardware includedYes
Other
Warranty10 years
MaterialSteel, Aluminum and Plastic
Other featuresQuickShift™ mechanism for easy monitor position adjustments, small
footprint
Packaging dimensions
Length, single unit (inches)32
Width, single unit (inches)13
Height, single box (inches)7
Weight, single unit (lbs)12.4
Single units per master pack2
Length, master carton (inches)33.1
Width, master carton (inches)13.8
Height, master carton (inches)8.9
Weight, master carton (lbs)26.6
| Marketing Text | The Visidec VFS-DV dual vertical freestanding desk mount is an ideal accessory for any dual monitor application. Being able to mount two screens one on top of the other with such versatility of movement creates a superior workspace for optimum productivity. Both monitors can be independently and infinitely adjusted up to 20° in any direction, and provides landscape to portrait rotation. The unique QuickShift lever provides independent height adjustment without the need for a single tool. An elegant design with a footprint so small, at just 422mm (16.25”) x 305mm (12”), leaving your desk clear of clutter with the flexibility to be located anywhere on the desk. |
| PI Date | March 2011 |
| Brand Name | Atdec |
| Manufacturer Web Site | http://www.atdec.com/ |
| Product Type | Dual-Monitor Stand |
| Other Features | * Supports a maximum weight of 12kg (26.5lbs) per display * Supports mounting hole patterns: 75mm x 75mm; 100mm x 100mm * Flexible solution for dual vertical display requirements * Made from strong die cast aluminum with a steel base * Ball joint mechanism allows infinite adjustment of displays up to 20? in any direction; * Portrait to landscape rotation * Pole height: 764mm (29”) * Quick release mechanism for fast display attachment/removal with a security feature * Small footprint of 422mm (16.25”) wide by 305mm (12”) deep * Internal cable management * Comes with all mounting hardware |
| Warranty Information | 10 year warranty if purchased after Jan 1, 2011 |
