The Aten VE-800A HDMI Extender provides a high-performance solution for extending your HDMI display up to 60m away from your source using cost-effective Cat 5e cabling. By incorporating advanced signal transmission technology, this extender allows for seamless A/V delivery over a single cable, making it perfect for installations where long-range connectivity is essential. It supports premium HDMI features, including 3D and Deep Colour, to ensure a picture-perfect viewing experience in any environment.

For maximum display compatibility, the VE-800A includes a dedicated DDC port, allowing you to utilise the display's EDID by connecting a second Cat 5e cable. This ensures the source device outputs the optimal resolution supported by your monitor or projector. The unit is designed for professional reliability, featuring a compact form factor that integrates easily into existing AV racks or behind wall-mounted screens.

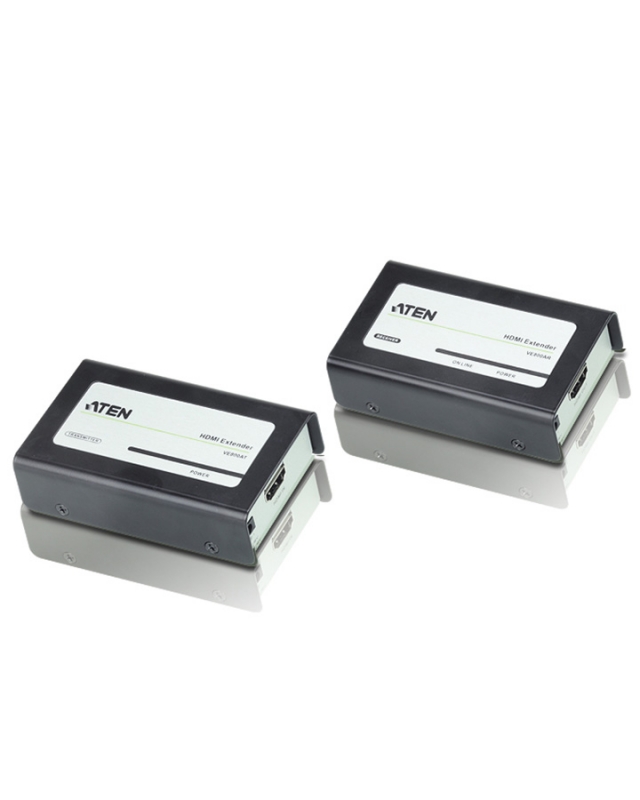

This complete kit includes both the transmitter (VE-800AT) and receiver (VE-800AR) units, along with power adapters and a mounting kit for a secure installation. Whether for digital signage, corporate boardrooms, or home theatre systems, the VE-800A delivers lossless digital video quality with the stability that ATEN is known for. The pure hardware design ensures a plug-and-play setup without the need for complex software or drivers.

IMPORTANT INSTALLATION NOTES

Power Requirement: This system requires a power supply at both the Transmitter and Receiver ends. Ensure power outlets are available at both locations.
Wiring Standard (Solid Cable): For UTP solid core cabling, T568B termination is mandatory. If using S/FTP shielded solid cable, either T568A or T568B is acceptable.
For maximum signal stability: and 4K performance approaching the max rated distance, we strongly recommend using Cat6A Shielded Patch Cords (004.100.xxxx) or SLD.C6ASFTP.XXX. For shorter distances, SLD.C6UTP.XXXX or SLD.C6AUUTP.XXX terminated to T568B is suitable.

FEATURES
Extends 1080p HDMI signals up to 40meters
Extends 1080i HDMI signals up to 60meters
Uses a single Cat 5e cable to connect the transmitter and receiver
Supports HDMI 3D and Deep Colour technology
DDC port for EDID data transmission via an optional second cable
8-segment equalisation adjustment switch for signal optimisation
HDCP 1.1 compatible for secure content playback
Includes mounting kit for flexible installation options
Wiring Standard Under UTP: T568B Only
Wiring Standard Under S/FTP: Either T568A or T568B
Recommended Patch Lead: CAT6A Shielded Only (004.100.xxxx range)
SPECIFICATIONS
Maximum Resolution: 1080p@60Hz
Transmission Distance: 40m (1080p), 60m (1080i)
Wiring Standard: T568B Required
HDMI Version: Supports 3D and Deep Colour
HDCP Compliance: HDCP 1.1
Video Input/Output: HDMI Type-A Female
Network Port: RJ45
Power Consumption: 5VDC, 1W (TX); 5VDC, 2W (RX)
Housing: Metal
Dimensions: 9.00cm x 5.50cm x 2.40cm
WARRANTY

1-Year Limited Warranty
