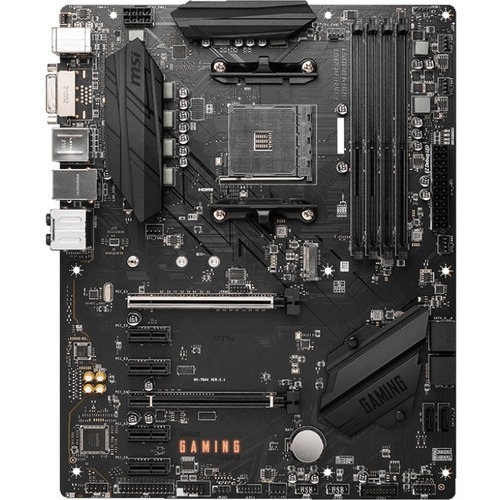

MSI B550 GAMING GEN3 Gaming Desktop Motherboard - AMD B550 Chipset - Socket AM4 - ATX - Ryzen 5, Ryzen 3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - 6 x SATA Interfaces B550 GAMING GEN3
No Longer Available
MSI B550 GAMING GEN3 Gaming Desktop Motherboard - AMD B550 Chipset - Socket AM4 - ATX - Ryzen 5, Ryzen 3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - 6 x SATA Interfaces
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
FAST AND FUTURE-READY STORAGE
MSI B550 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
DEDICATED HIGH DEFINITION AUDIO PROCESSOR
Make sure you enjoy the purest sound quality in both stereo and surround sound.
HIGH QUALITY AUDIO CAPACITORS
A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.
HIGH QUALITY AUDIO JACKS
Keep your sound perfect by transmit your audio with pure digital signal.
- Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
- Supports DDR4 Memory, up to 4400(OC) MHz
- Lightning Fast Game experience: Turbo M.2 Gen3 x4, AMD Turbo USB 3.2 GEN 2
- Enhanced Power Design: Core Boost, DDR4 Boost
- MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports AMD Crossfire™
- Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
- Audio Boost: Reward your ears with studio grade sound quality
| Audio Channels | 7.1 |
| Brand Compatibility | AMD |
| Gigabit Ethernet | Yes |
| Onboard Video | CPU Dependent Video |
| Form Factor | ATX |
| Width | 304.8 mm |
| Depth | 243.8 mm |
| Number of PCI Express x1 Slots | 6 |
| Number of Total Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 6 |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 2133 MHz |
| 2400 MHz | |
| 2667 MHz | |
| 2800 MHz | |
| 2933 MHz | |
| 3000 MHz | |
| 3066 MHz | |
| 3200 MHz | |
| 3466 MHz | |
| 3600 MHz | |
| 3733 MHz | |
| 3866 MHz | |
| 4000 MHz | |
| 4133 MHz | |
| 4266 MHz | |
| 4400 MHz | |
| 1866 MHz |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 1 |
| RAID Levels | 10 |
| 1 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Product Type | Gaming Desktop Motherboard |
| Manufacturer Part Number | B550 GAMING GEN3 |
| Manufacturer Website Address | http://au.msi.com |
| Manufacturer | MSI |
| Product Model | B550 GAMING GEN3 |
| Product Name | B550 GAMING GEN3 Gaming Desktop Motherboard |
| Brand Name | MSI |
| HDMI | Yes |
| HDMI Version | 2.0b |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Processor Supported | Ryzen 3 |
| Ryzen 5 | |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| Chipset Manufacturer | AMD |
| Chipset Model | B550 |
| Multi GPU Supported | CrossFire |
| Processor Generation Supported | 3rd Gen |
| 3rd Gen |
