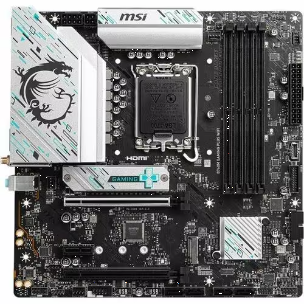

MSI B760M GAMING PLUS WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX - Core, Pentium Gold, Celeron Processor Supported - 256 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.1 B76

SKU
411807
Brand
MPN
B760M GAMING PLUS WIFI
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $290.00 Regular Price $337.00
Buy Now And Earn 290 Reward Points!

MSI B760M GAMING PLUS WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX - Core, Pentium Gold, Celeron Processor Supported - 256 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces

B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.

Extended Heatsink

  • Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr

  • Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink

  • The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

  • High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked 'keep-out-zone' allows for easy and safe installation and a perfect fit.

12+1+1 DUET RAIL POWER SYSTEM

Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, B760M GAMING PLUS WIFI is ready to sustain heavy daily work.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

  • 6 PCB layers
  • 2oz Thickened Copper

EZ M.2 CLIP

Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.

Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.

SOLID PIN DESIGN

The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.

ADVANTAGES OF SOLID PIN POWER CONNECTOR

  • Improved stability : Larger contact area enhances stability during power delivery.
  • Low impedance : Solid pins offer low impedance, enabling efficient power flow.
  • Strong durability : The solid pin design ensures strong durability, capable of withstanding demanding conditions.
  • Suitable for high-current applications.

ANTI-CORROSIVE STAINLESS STEEL IO SHIELD

Corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as more durable compare to traditional IO Shields.

Features
  • Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Guides & Documents
Audio
Audio Channels7.1
Miscellaneous
Brand CompatibilityIntel
Video
Onboard VideoCPU Dependent Video
Physical Characteristics
Form FactorMicro ATX
Width243.8 mm
Depth243.8 mm
Onboard Interfaces
Number of SATA Interfaces4
Total Number of Onboard USB Ports9
Number of Onboard USB 2.0 Ports4
Number of M.2 Interfaces2
I/O Expansions
Number of PCI Express x1 Slots1
Number of PCI Express x16 Slots2
PCI Express StandardPCI Express 3.0
PCI Express 4.0
Total Number of PCI Express Slots3
I/O Controller
RAID Levels10
1
0
5
Controller TypeSerial ATA/600
RAID SupportedYes
Memory
Maximum Memory Supported256 GB
Memory TechnologyDDR5 SDRAM
Number of Memory Slots4
Memory Form FactorDIMM
UDIMM
Memory Speed Supported5800 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
5600 MHz
5400 MHz
5200 MHz
5000 MHz
4800 MHz
Network & Communication
BluetoothYes
Gigabit EthernetYes
Wireless LANYes
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/ax
Bluetooth StandardBluetooth 5.3
2.5Gigabit EthernetYes
General Information
Product TypeGaming Desktop Motherboard
Manufacturer Part NumberB760MGAMINGPLUSWIFI
Manufacturer Website Addresshttp://au.msi.com
ManufacturerMSI
Product ModelB760M GAMING PLUS WIFI
Product NameB760M GAMING PLUS WIFI Gaming Desktop Motherboard
Brand NameMSI
Interfaces/Ports
HDMIYes
HDMI Version2.1
Number of Network (RJ-45) Ports1
DisplayPortYes
Total Number of USB Ports6
Number of USB 2.0 Ports2
Number of USB 3.2 Gen 2 Type-A Ports2
Processor & Chipset
Processor SupportedCeleron
Core
Pentium Gold
Total Processor Supported1
Processor SocketSocket LGA-1700
Chipset ManufacturerIntel
Chipset ModelB760
Processor Generation Supported14th Gen
13th Gen
14th Gen
13th Gen
12th Gen
12th Gen
