DESCRIPTION

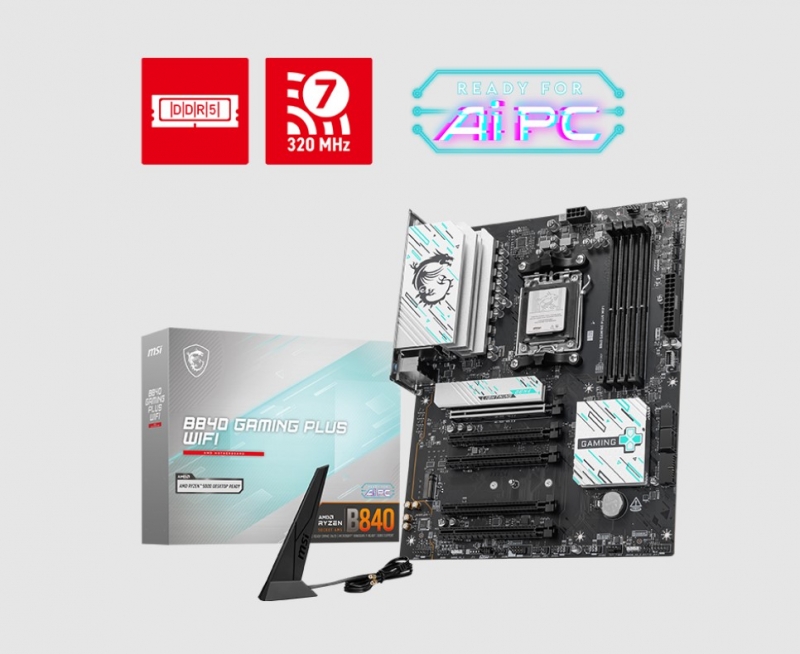

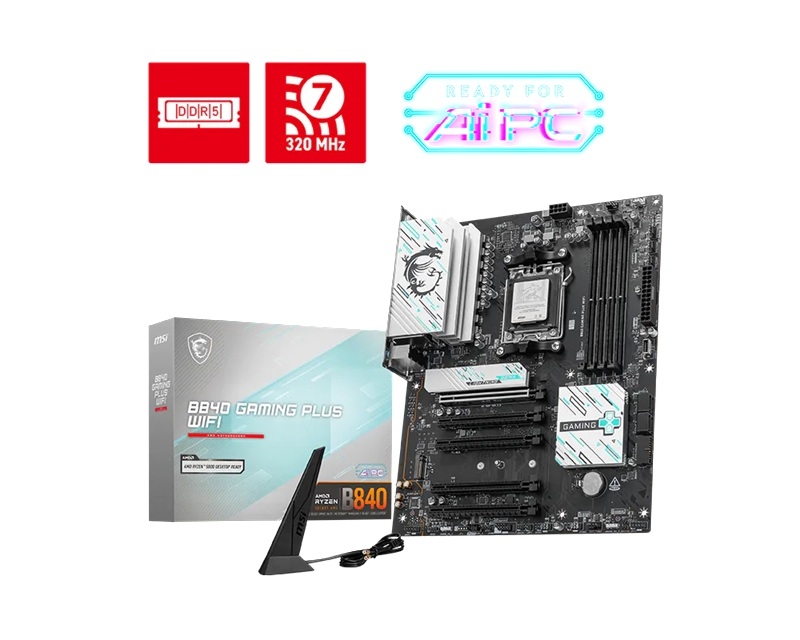

MSI B840 GAMING PLUS WIFI, AM5, 4x DDR5 256GB, 1x HDMI, 4x PCI-E x16 slot, 3x M.2, Wi-Fi 7

Chipset
AMD X840

CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Onboard Graphics
1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*
1x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*

Slot
4x PCI-E x16 slot

Audio
Realtek® ALC897
7.1-Channel High Definition Audio

Storage
3x M.2

RAID
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

LAN
Realtek® 8126-CG 5G LAN

WIRELESS LAN & BLUETOOTH
Wi-Fi 7
Supports Bluetooth® 5.4**, MLO, 4KQAM

LED FEATURE
4x EZ Debug LED

OPERATING SYSTEM
Support for Windows® 11 64-bit
