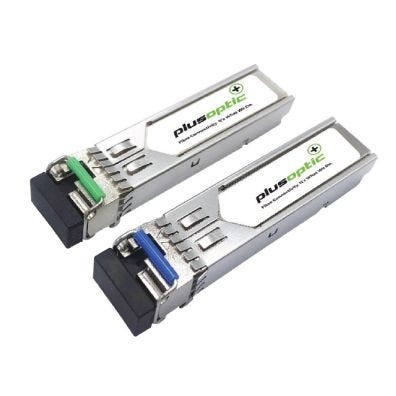

Plusoptic 1.25G, BiDi SFP, TX1490nm / RX1550nm, 80KM Transceiver, LC Connector for SMF with DDMI
The Plusoptic 1.25G BiDi SFP Transceiver is a high-performance and cost-effective solution for extending your network over long distances. This hot-pluggable module allows for data transmission up to 80km over a single-mode fibre optic cable, making it ideal for telecommunication providers, data centres, and large enterprise networks. Its bidirectional capability means it transmits and receives signals on different wavelengths over a single fibre, effectively doubling your network's capacity without the need for additional cabling. This transceiver is perfect for applications such as Gigabit Ethernet, Fibre Channel, and switch-to-switch interfaces.
This transceiver is built for reliability and ease of use. It features a hot-pluggable SFP footprint, allowing for installation and removal without shutting down your network equipment. The inclusion of Digital Diagnostic Monitoring (DDM) provides real-time access to crucial operating parameters, including temperature, laser bias current, and optical power, enabling proactive network maintenance. The rugged metal enclosure minimises electromagnetic interference (EMI) and provides excellent electrostatic discharge (ESD) protection, ensuring stable performance in demanding environments.
Engineered for compatibility, this Plusoptic transceiver adheres to the SFP Multi-Source Agreement (MSA) and SFF-8472 standards. This ensures seamless integration with a wide range of networking equipment from various manufacturers. With its low power consumption and robust design, this transceiver offers a dependable and energy-efficient solution for extending your network reach.
The use of a 1490nm DFB laser for transmitting and a 1550nm PIN photodetector for receiving ensures clear and consistent signal integrity over the entire 80km distance. This makes it an excellent choice for critical network links where performance and uptime are paramount. Whether you are upgrading an existing network or building a new one, this transceiver provides the performance and reliability needed for modern high-speed data transmission.
FEATURES
- Supports dual data-rates of 1.25Gbps/1.0625Gbps
- Hot-pluggable SFP footprint
- Bi-Directional LC connector
- 1490nm DFB laser and 1550nm PIN photodetector
- Applicable for 80km Single-Mode Fibre connection
- Low power consumption
- Digital Diagnostic Monitor Interface (DDMI)
- Compliant with SFP MSA and SFF-8472
- Very low EMI and excellent ESD protection
SPECIFICATIONS
- Device Type: SFP
- Data Rate: 1.25Gbps
- Wavelength: TX1490nm / RX1550nm
- Max Distance: 80km
- Connector: Simplex LC
- Fibre Type: SMF
- Power Consumption: <1.0W
- Operating Temperature: 0 C to 70 C (Commercial)
- DDMI: Yes
WARRANTY
3-Years Limited Warranty
