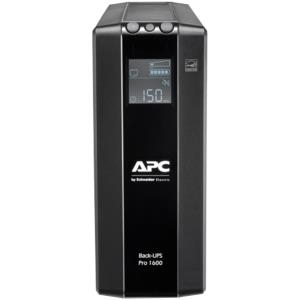

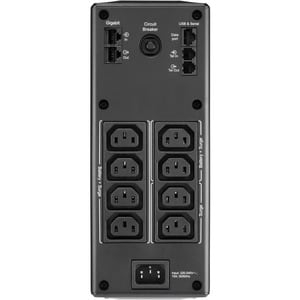

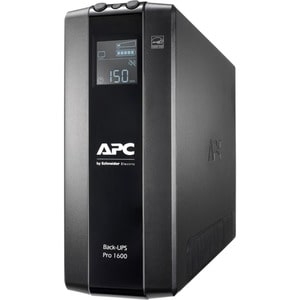

Apc - Schneider BACK UPS PRO BR 1600VA 8OUTLETS AVR LCD INTERFACE BACK U BR1600MI
SKU
367311
Brand
MPN
BR1600MI
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$707.00
Buy Now And Earn 707 Reward Points!
High Performance Computer and Electronics UPS for Premium Power
Protection. Provides notification of changing utility power and
UPS power conditions. Periodic battery self-test ensures early
detection of a battery that needs to be replaced.
Guides & Documents
Controls/Indicators
| Status Indicators |
LCD Status Display:
|
Interfaces/Ports
| USB (HID Compliant) Port | Yes |
Miscellaneous
| Environmentally Friendly | Yes |
Management
| Alarm | On Battery |
| Low Battery | |
| Overload | |
| Replace Battery |
Physical Characteristics
| Weight (Approximate) | 10.90 kg |
| Form Factor | Tower |
| Height | 100 mm |
| Width | 250 mm |
| Depth | 382 mm |
Technical Information
| Application/Usage | Multimedia Device |
| Modem | |
| Surveillance System | |
| Computer | |
| Mission Critical Equipment | |
| Smartphone | |
| Electronic | |
| Home | |
| Storage Device | |
| Gaming Console | |
| Workstation | |
| Business | |
| Router | |
| Office | |
| Tablet | |
| Equipment | |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Receptacles | 8 x IEC 60320 C13 |
| Plug/Connector Type | IEC 60320 C14 |
| AVR | Yes |
| Number of Surge-only Outlets | 2 |
| Transfer Time | 0 ns |
Battery Information
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 10.40 Minute |
| Backup/Run Time (Full Load) | 2.60 Minute |
| Battery Characteristics | Maintenance-free, Sealed, Water-proof |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 16 Hour |
Environmental Conditions
| Sound Emission | 45 dB(A) |
| Thermal Dissipation | 21.50 BTU/h |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 15 km |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | -15°C - 45°C |
General Information
| Product Type | Line-interactive UPS |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Model | BR1600MI |
| Product Name | Back-UPS Pro BR1600MI 1.6KVA Tower UPS |
| Product Line | Back-UPS Pro |
| Product Series | BR |
| Brand Name | Schneider Electric |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Load Capacity | 1.60 kVA/960 W |
| Surge Energy Rating | 509 J |
| Waveform Type | Stepped Approximated Sine Wave |
| Input Voltage Range | 176 V AC - 294 V AC |
| Output Frequency | 50 Hz to 60 Hz |
| Input Frequency | 50 Hz to 60 Hz |
